Countersunk Magnets, Steel Discs & Screws Pack - 13/16 in. dia
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Secure and fasten with precision using this pack of high-performance countersunk Neodymium (N42) magnets, with both North and South pole magnets included as well as the required screws.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
Countersunk Magnets, Steel Discs & Screws Pack - 13/16 in. dia

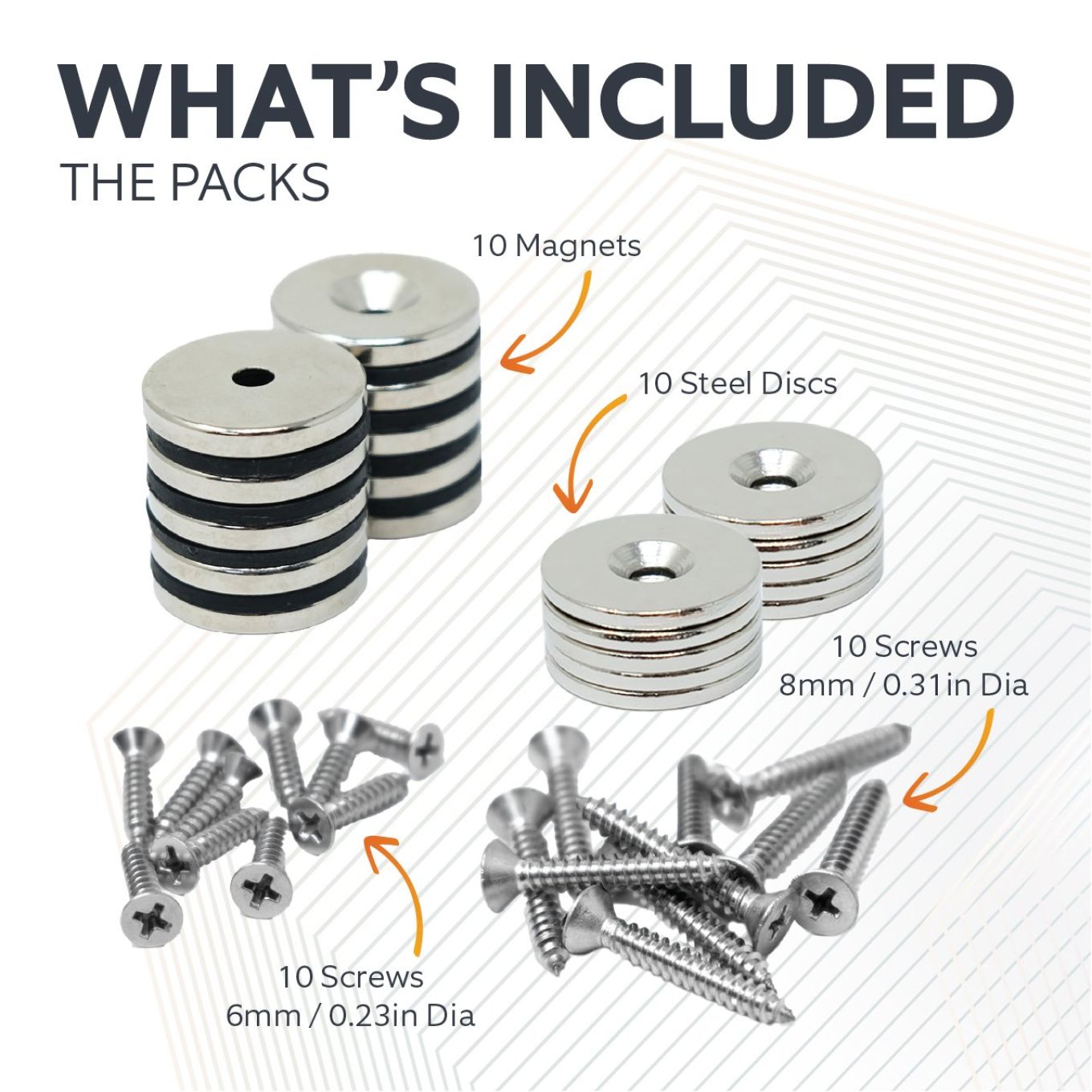

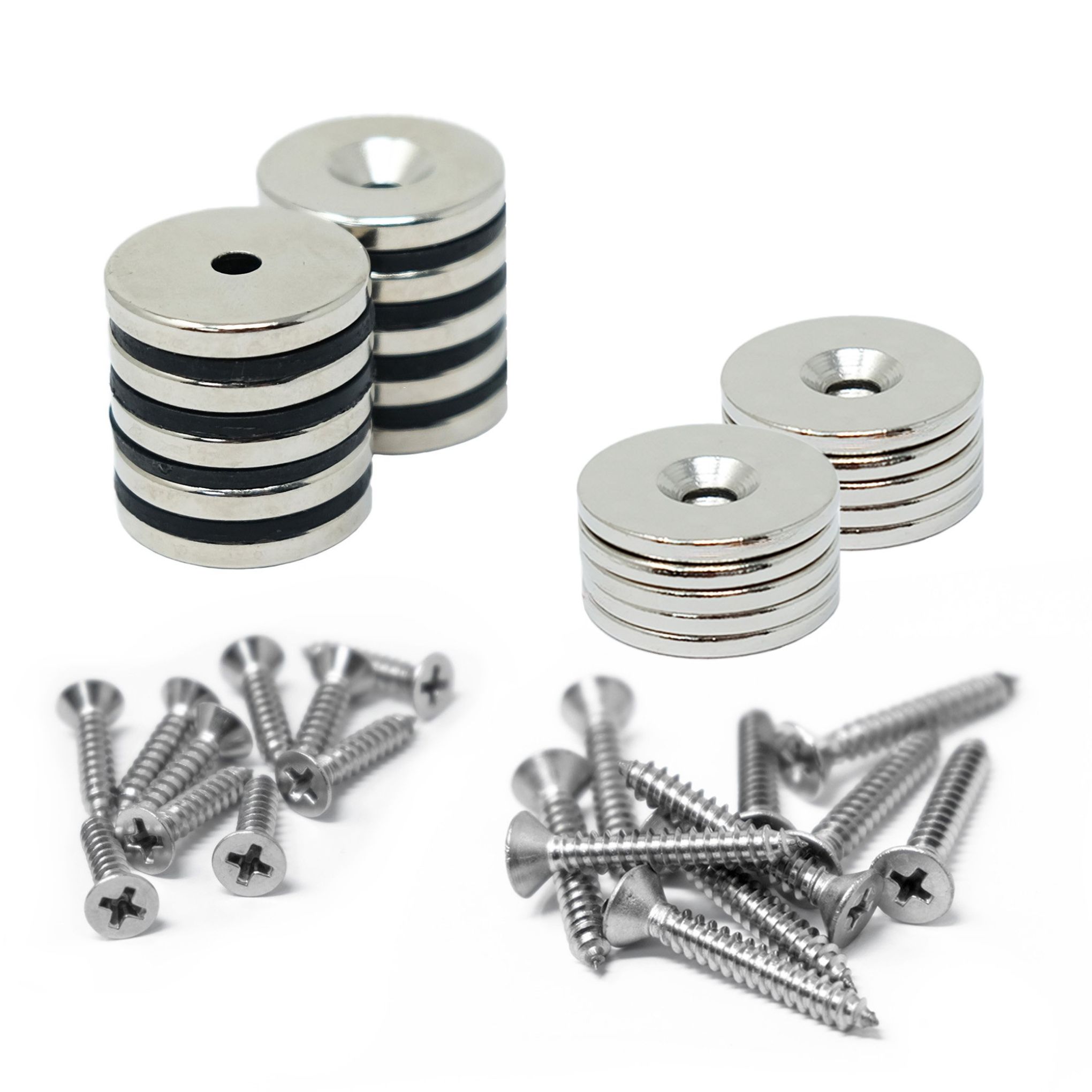

- Pack includes 10 magnets, 10 steel discs and 20 screws

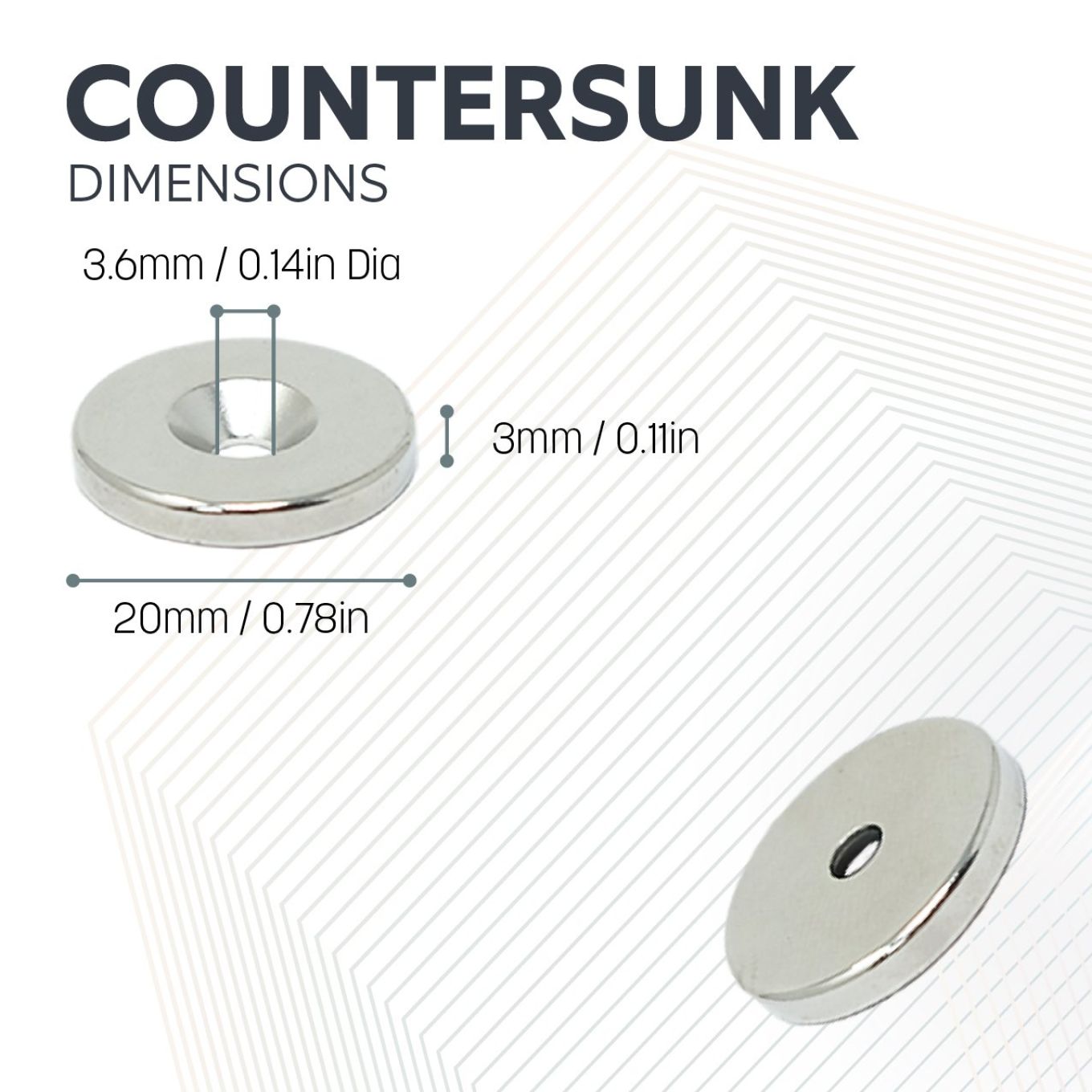

- 20mm diameter x 3mm thick with a 3.6mm diameter countersunk hole for fixing
- 0.79 in. diameter x 0.12 in. thick with a 0.14 in. diameter countersunk hole for fixing
- +/-0.1mm (0.004 in.) tolerance
- Each magnet has its north pole on the countersunk face
- Each magnet can support 4.5kg (9.9lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
These versatile, thin countersunk magnets from first4magnets are ideal for creating discreet magnetic cupboard door catches or for holding removable bath panels in place plus many other uses. Although just 3mm thick, each magnet is capable of supporting 4.5kg in a vertical position or 0.9kg in a shear position when in direct contact with another magnet or a steel surface. They are available with either pole on the magnetic face so two of these can be used on opposing surfaces to attract. For the perfect finish, countersink these magnets into a wooden surface and screw in place using a stainless steel screw.
