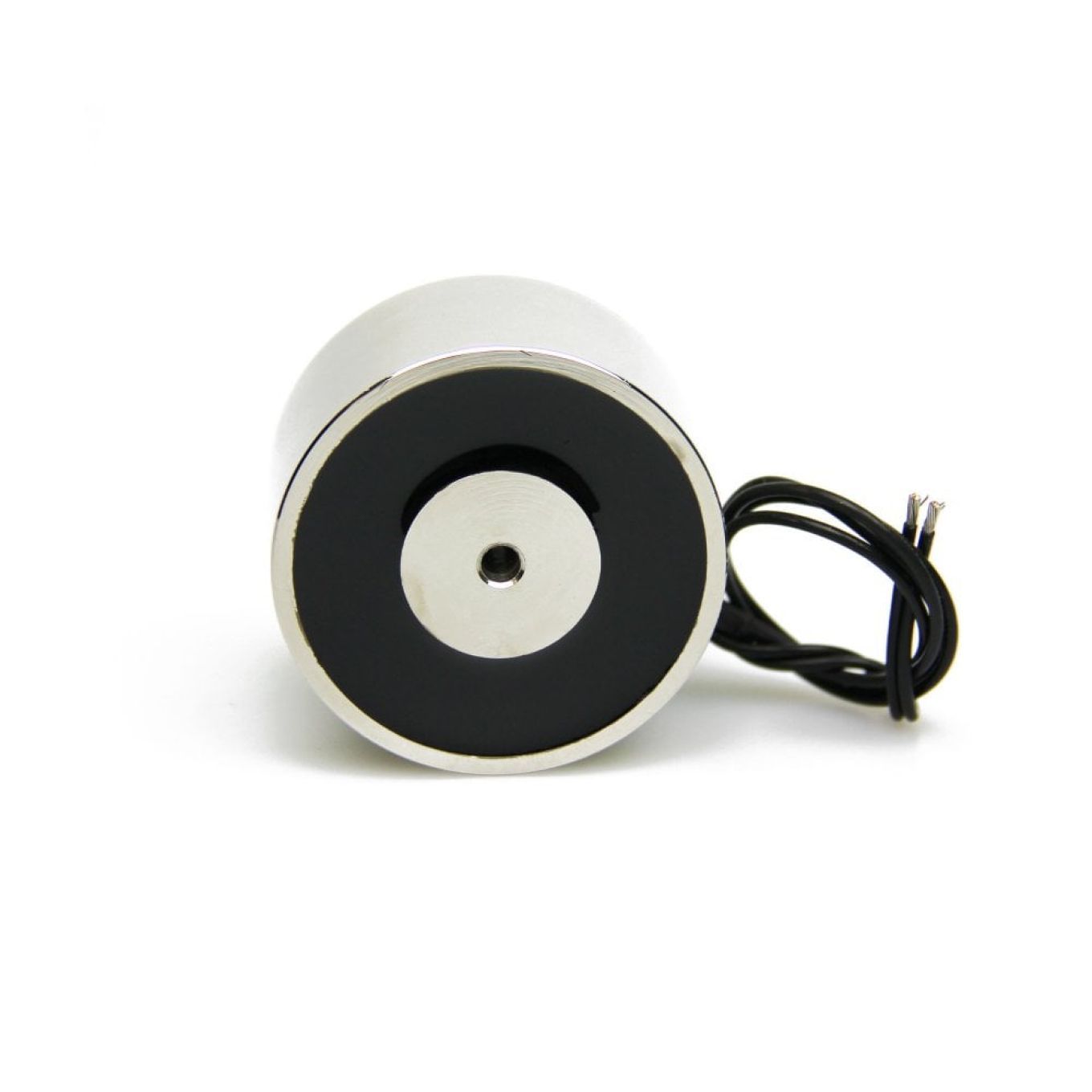

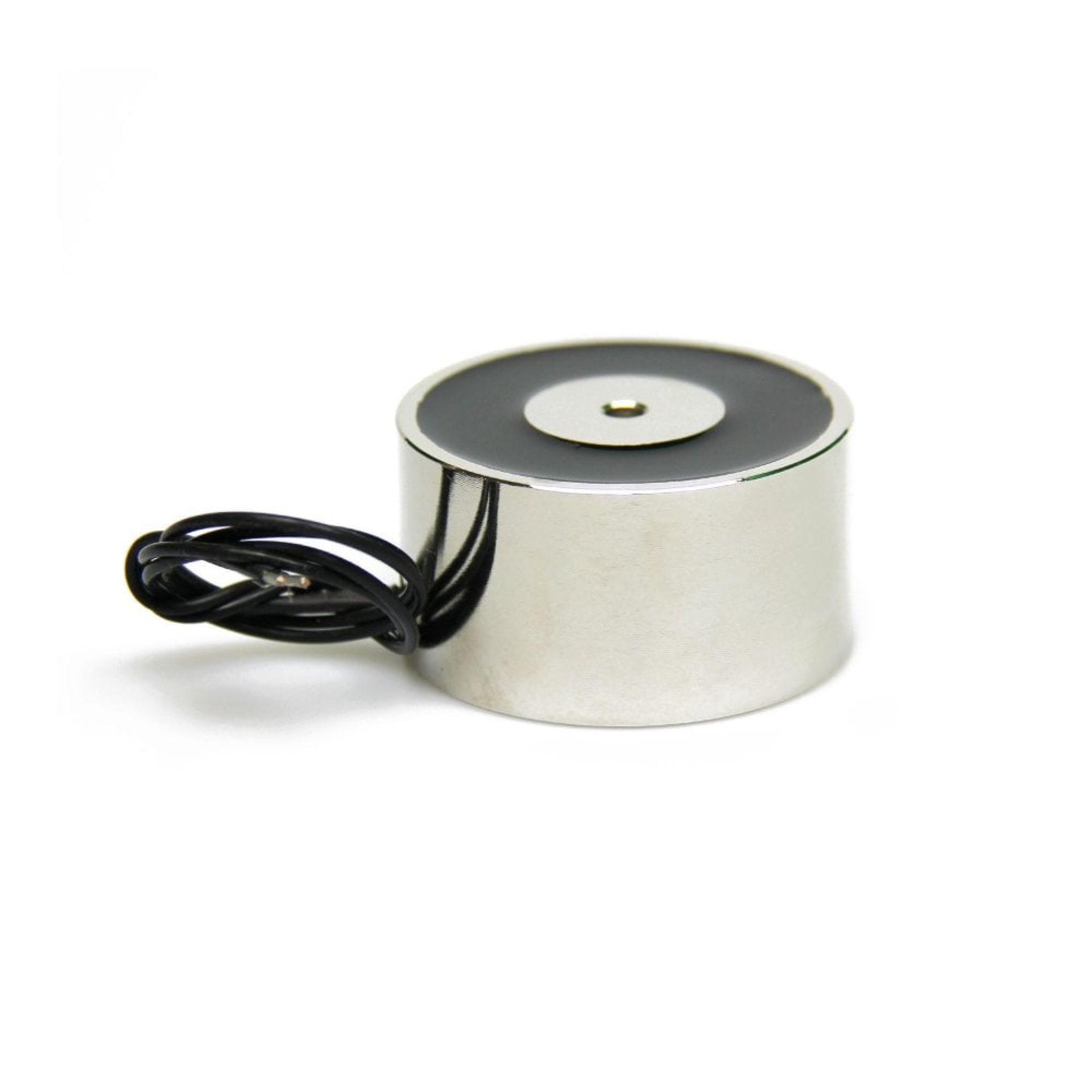

Electromagnet with M5 Mounting Hole - 24V/10W) - 110.25lbs Pull - 1-7/8 in. dia x 1-1/16 in. thick
Easy to use electromagnet for lifting and holding applications. These magnets require a power source; when electricity is passed through them they produce a strong magnetic field and when the power is removed, the magnetic field disappears instantly.
Please note, the listed pull strength is based on the electromagnet being in direct contact with a steel or ferrous surface that is equal in thickness to the magnet itself.
For more information on our electromagnets range, or to keep the data to hand, please view our electromagnets brochure.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
Electromagnet with M5 Mounting Hole - 24V/10W) - 110.25lbs Pull - 1-7/8 in. dia x 1-1/16 in. thick
- 50mm diameter x 27mm thick.
- 1.97 in. diameter x 1.06 in. thick.
- Magnetic field switched on and off using electric current.
- Each magnet has a safe working limit (SWL) of up to 50kg (110.25lbs) in a vertical direct position when electricity is applied.
- Zinc Plated Mild Steel.

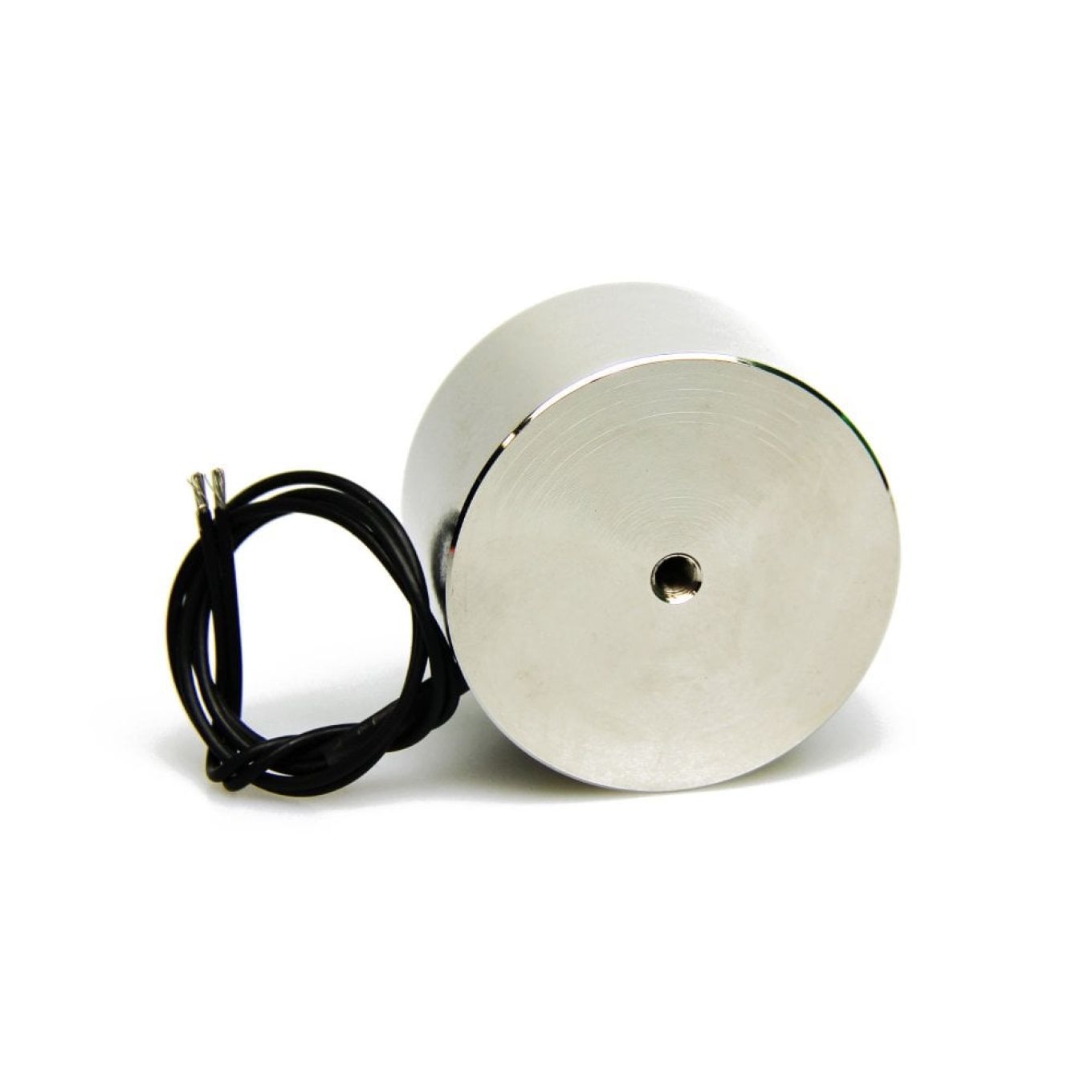

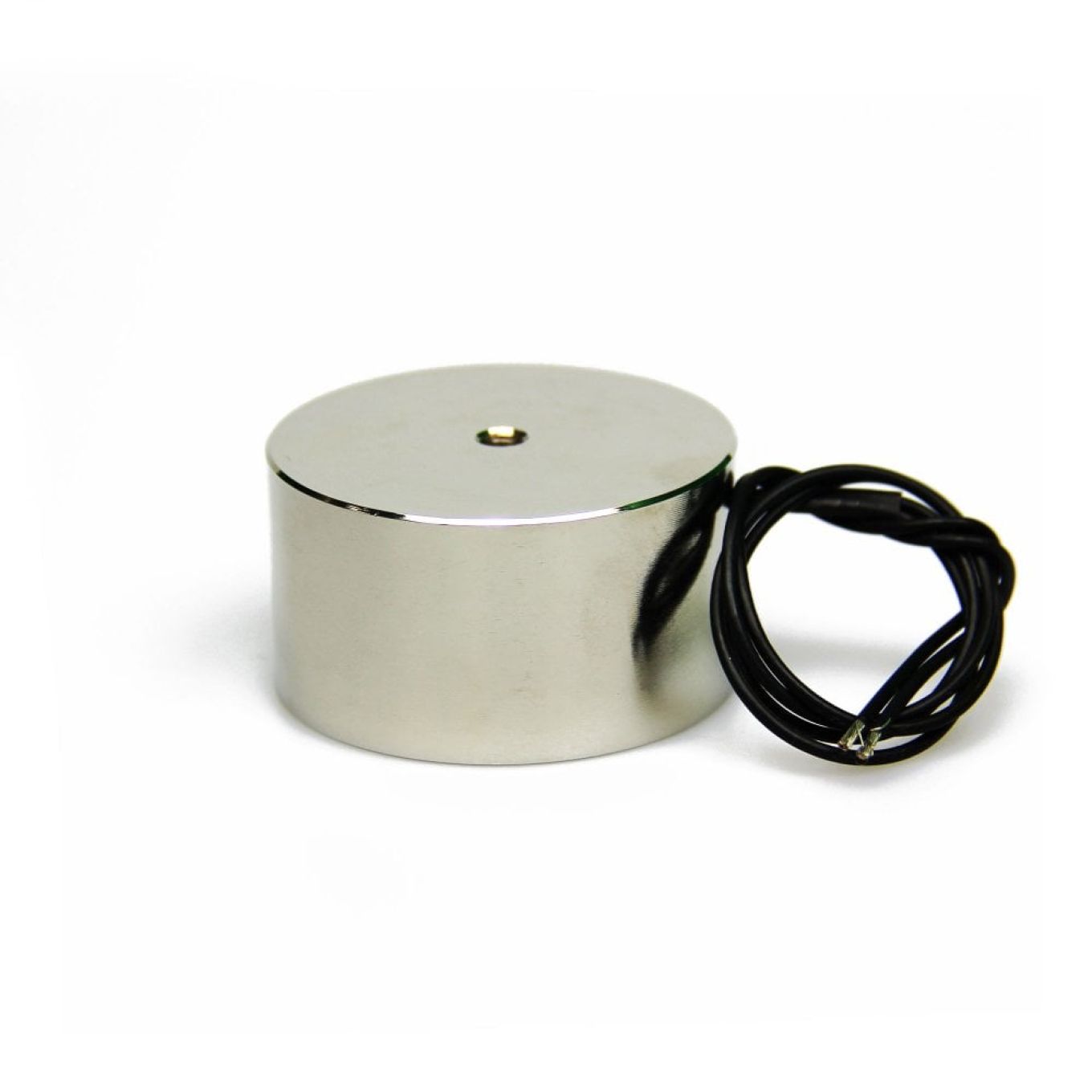

- Supplied with an M5 threaded hole through the electromagnet for fixing and mounting.
- Operating voltage 24VDC, power source not included.
These powerful electromagnets, commonly referred to as ‘energise to hold’ magnets, generate a magnetic field when they are connected to a live direct current and have zero magnetic strength when ‘switched off’. Electromagnets are commonly used in door and hatch mechanisms on machinery, in automated assembly lines, for robotics and the lifting and handling of ferrous materials. Each magnet is supplied with approximately 200mm (7.87 in.) (7.87 in.) of wire for connecting to a direct current (DC) power source.
