*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Resistant to corrosion and capable of operating at temperatures up to 500°C, this Alnico magnet is ideal for demanding applications, including high-temperature environments, engineering and manufacturing, marine and sub-sea use, testing equipment, and specialist industrial applications.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.

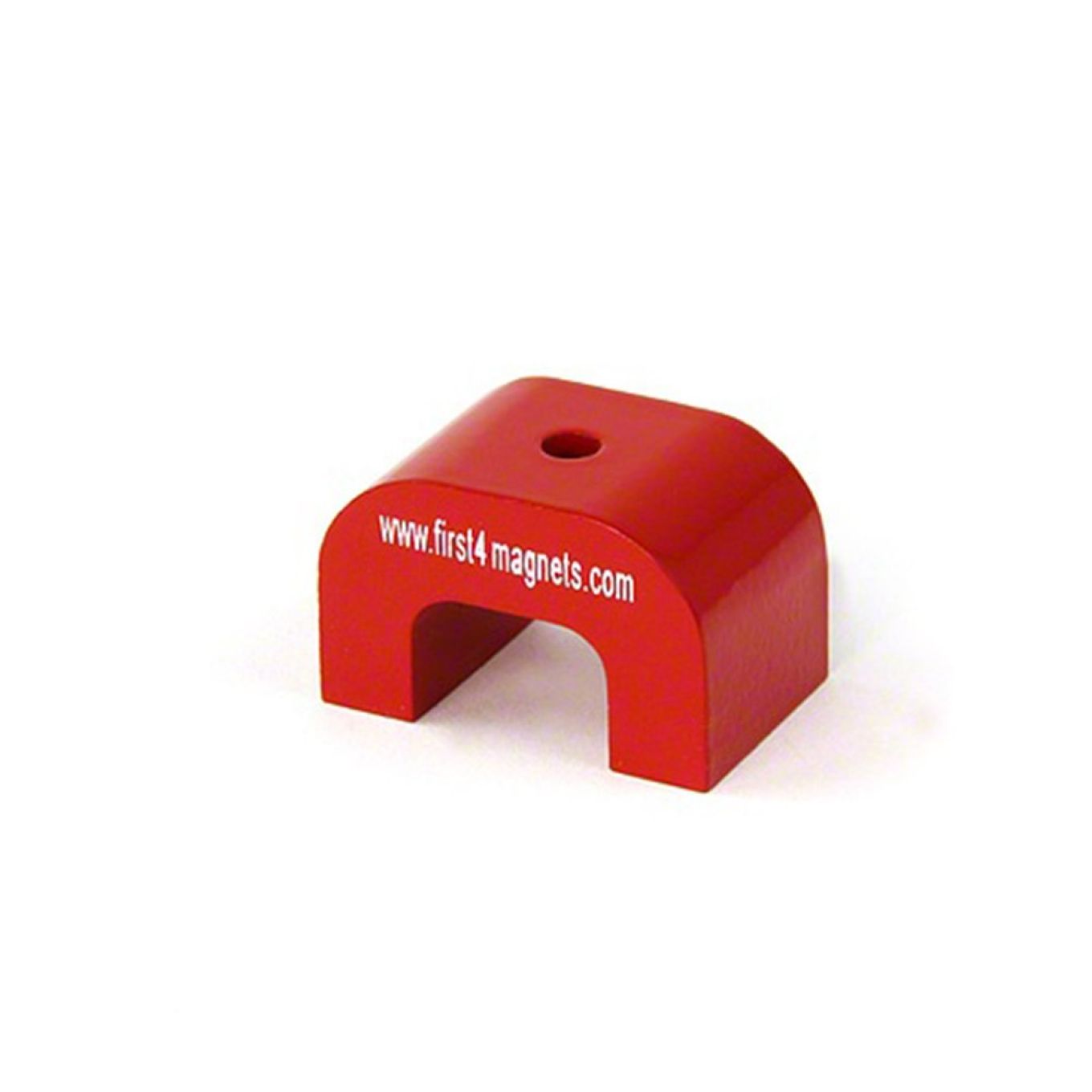

Medium Red Alnico Horseshoe Magnet - 1-9/16 in. x 1 in. x 1 in. - 19.85lbs Pull
- 40mm x 25mm x 25mm.
- 1.58 in. x 0.98 in. x 0.98 in.
- 20mm (0.79 in.) x 10mm (0.39 in.) individual pole faces.
- 4.5mm (0.18 in.) hole.
- 9kg (19.85lbs) pull.
- 932 degree Fahrenheit operating temperature.
- Protective epoxy coating.
A compact, high-performance Alnico horseshoe magnet designed for applications where strength, temperature resistance and durability matter.
With a 9kg pull force and maximum operating temperature of 500°C, this Alnico horseshoe magnet is particularly suited to demanding engineering, manufacturing, testing and educational applications where conventional magnets may not be suitable.Its traditional horseshoe shape positions the north and south poles at opposite ends, creating two clearly defined pole faces. This makes it useful for magnetic demonstrations and experiments, as well as practical engineering applications where a concentrated magnetic field is required.
The Alnico construction provides excellent temperature stability and corrosion resistance, while the protective red epoxy finish provides additional surface protection. A 4.5mm mounting hole also allows the magnet to be incorporated into suitable fixtures, equipment and custom assemblies.
