Neodymium Pot Magnets, Steel Discs & Screws Pack - 1 in. dia
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Secure and fasten with precision using this pack of high-performance countersunk Neodymium (N42) magnets, with both North and South pole magnets included as well as the required screws.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
Neodymium Pot Magnets, Steel Discs & Screws Pack - 1 in. dia

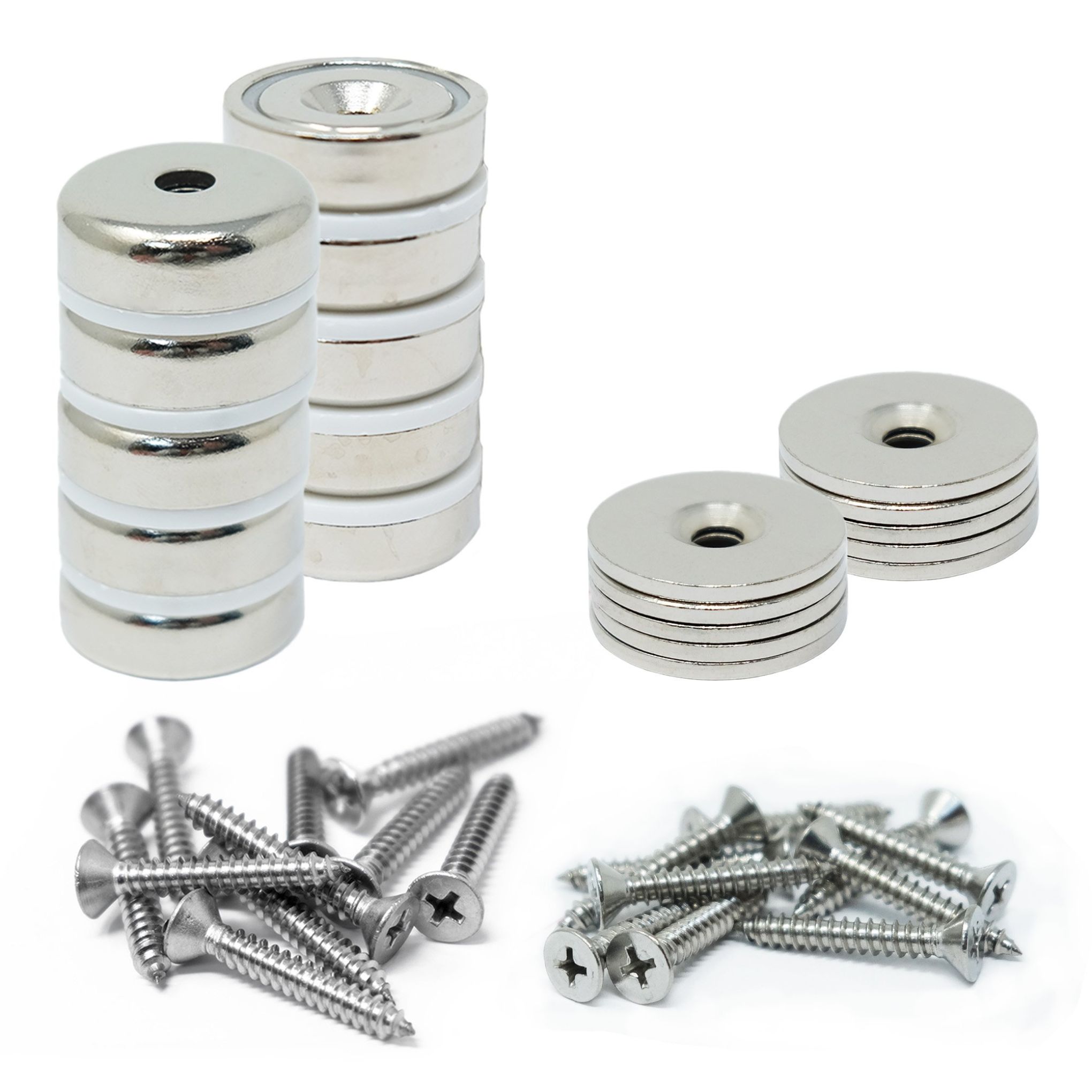

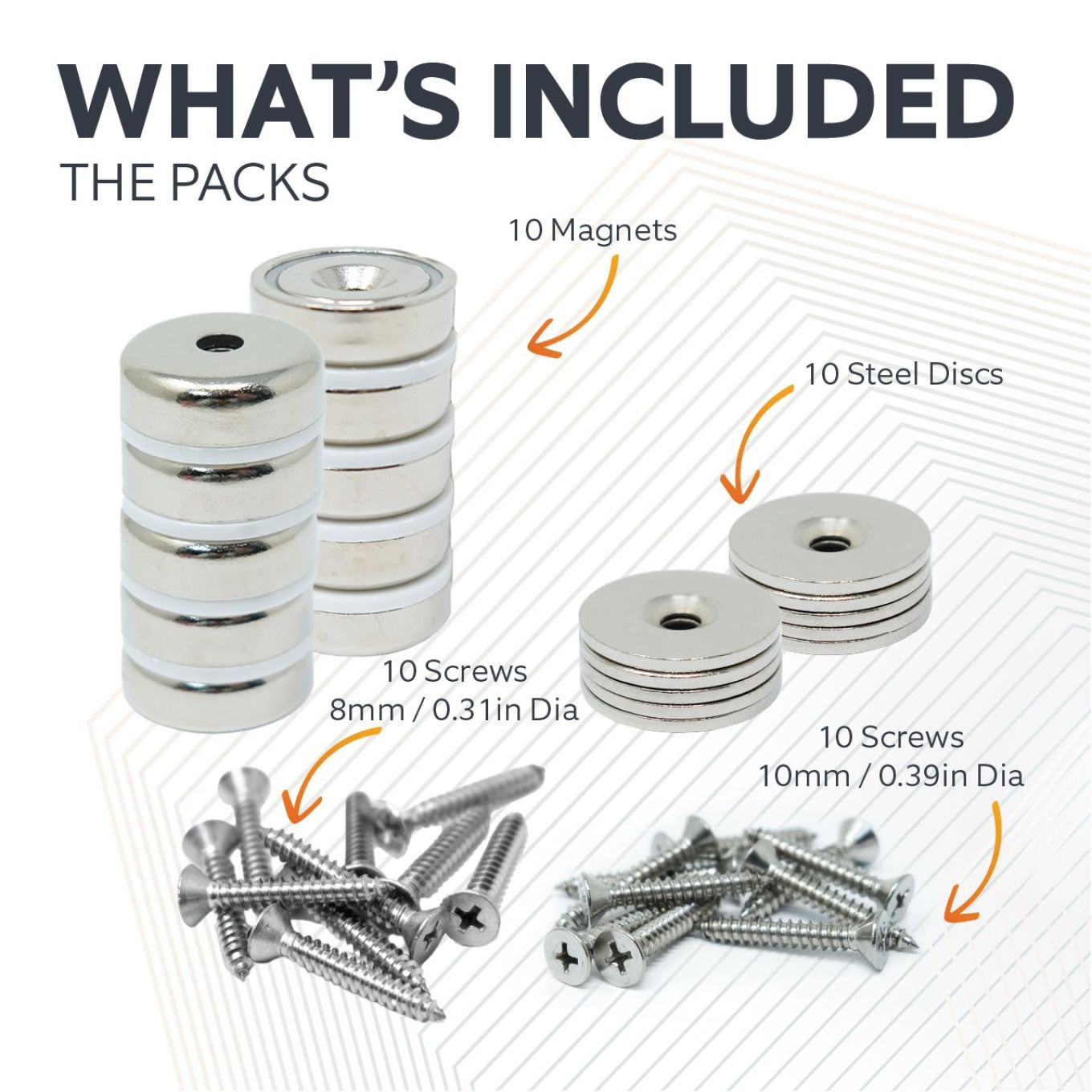

- Pack includes 10 magnets, 10 steel discs and 20 screws

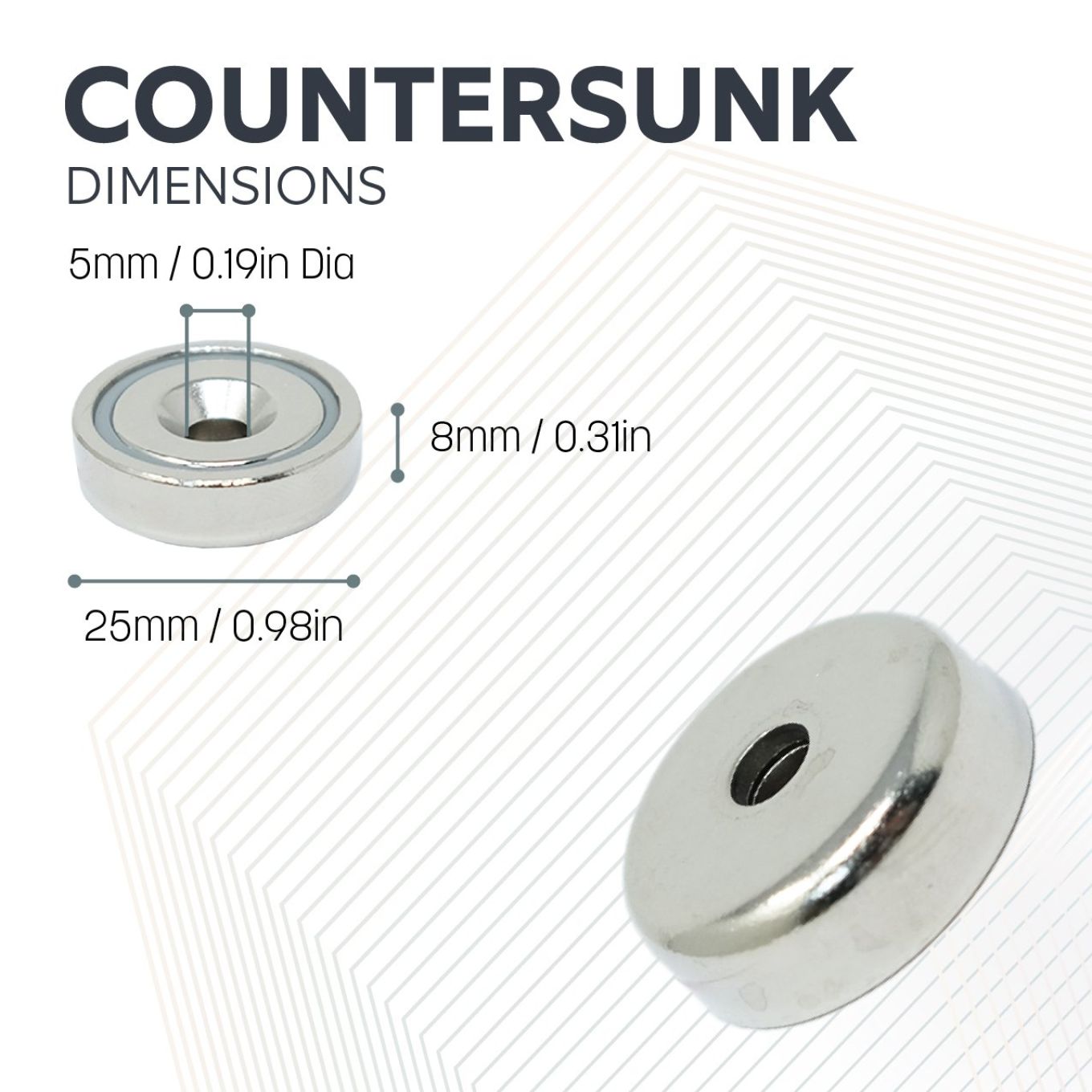

- 25mm diameter x 8mm thick with a 5mm diameter countersunk hole for fixing
- 0.98 in. diameter x 0.31 in. thick with a 0.2 in. diameter countersunk hole for fixing
- +/-0.1mm (0.004 in.) tolerance
- Each magnet is only magnetic on the countersunk face
- Each magnet can support 57.3lbs pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets are countersunk on the magnetic face and can be fixed to a surface with a 5mm screw, pot magnets are also available with boreholes and threaded studs.
