North & South Neodymium Countersunk Magnets & Screws Pack - 13/16 in. dia x 5/32 in. thick
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Secure and fasten with precision using this pack of high-performance countersunk Neodymium (N42) magnets, with both North and South pole magnets included as well as the required screws.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
North & South Neodymium Countersunk Magnets & Screws Pack - 13/16 in. dia x 5/32 in. thick

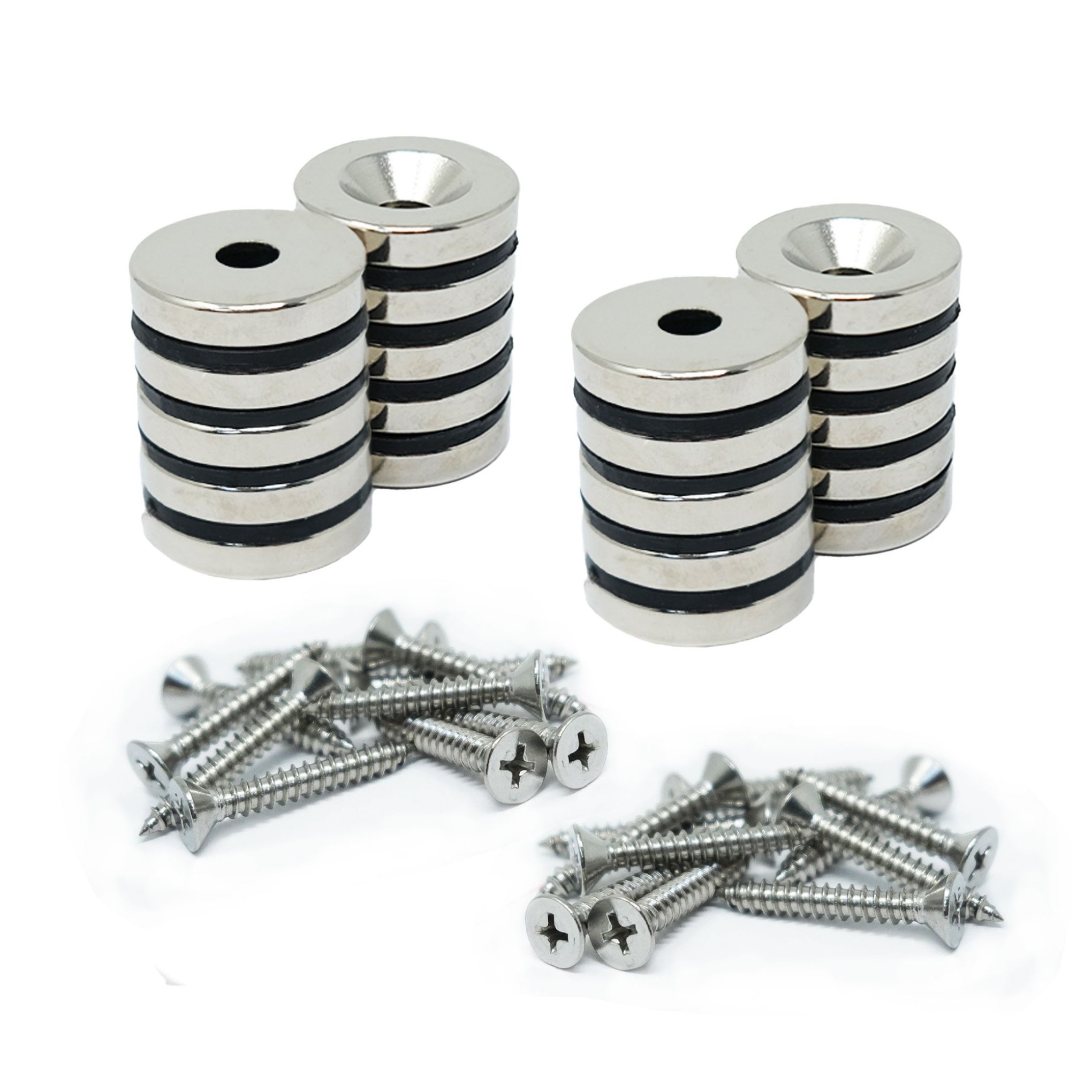

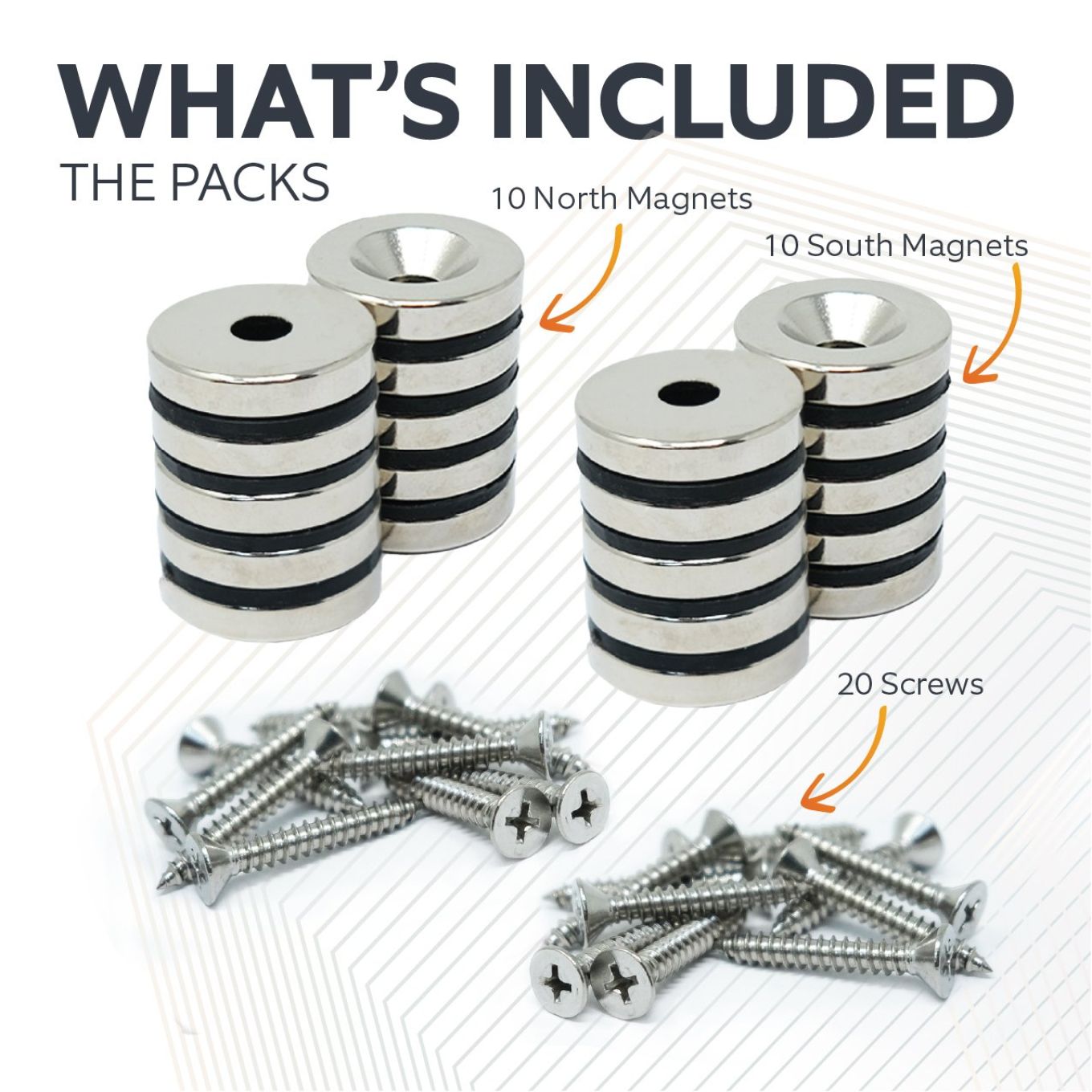

- Pack includes 10 magnets with North pole, 10 magnets with South pole and 20 screws.

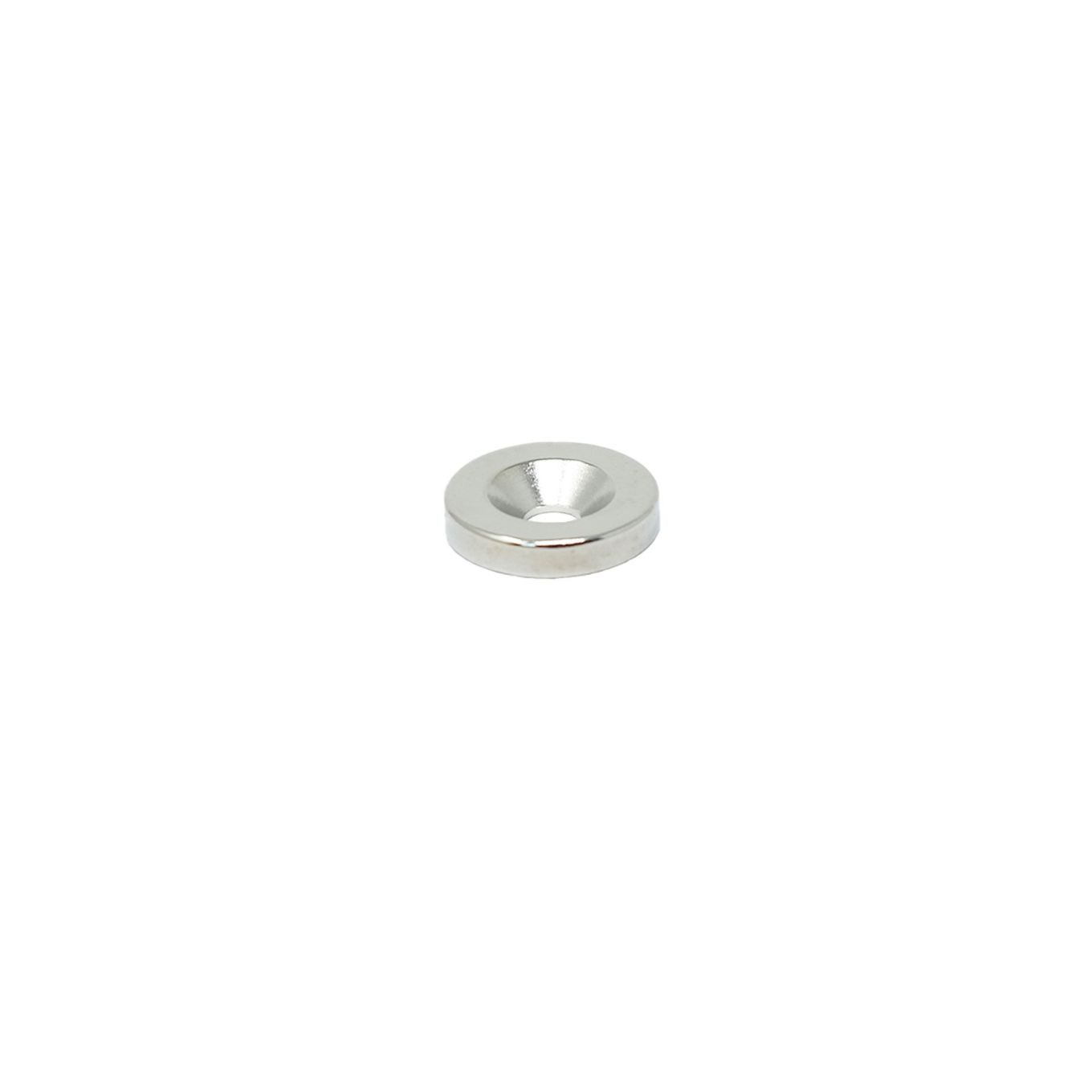

- 20mm diameter x 4mm thick with a 5.2mm diameter countersunk hole for fixing
- 0.79 in. diameter x 0.16 in. thick with a 0.2 in. diameter countersunk hole for fixing
- +/-0.1mm (0.004 in.) tolerance
- Each magnet has its north pole on the countersunk face
- Each magnet can support 6.7kg (14.77lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
- 10mm (0.39 in.) x 4.8mm thread (0.18 in.) countersunk screws included
Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Our 20mm x 4mm countersunk circular magnets provide an astonishing magnetic pull for such a small magnet. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect. Also available with the south pole on the countersunk face.
