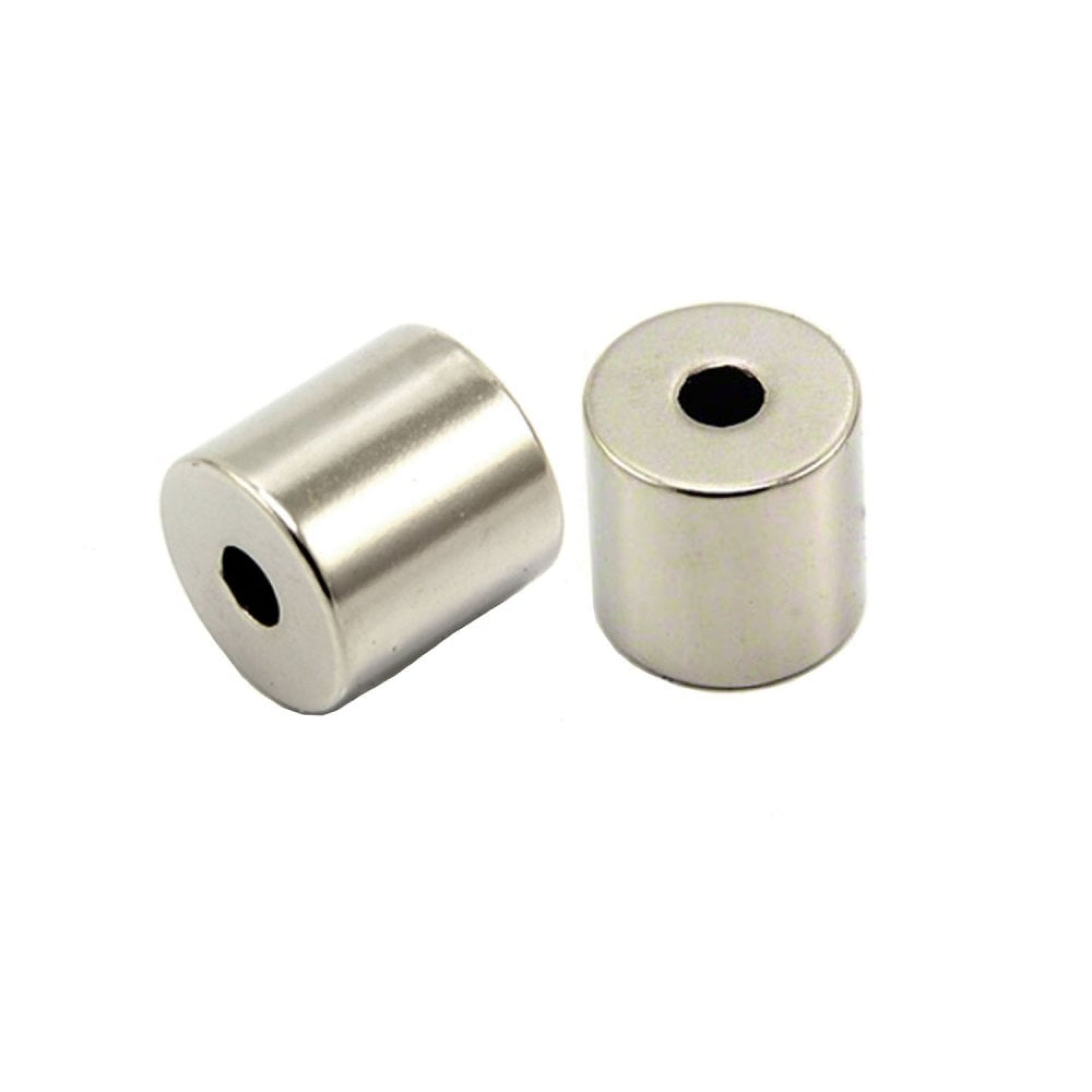

20mm dia x 20mm thick Diametrically Magnetised N42 Neodymium Magnet - 8kg Pull
High-performance, diametrically magnetised Neodymium (N42) cylindrical disc magnet with central 6mm hole. These diametrically magnetised magnets have their north and south pole on opposite curved sides, cutting the flat surface in half.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
20mm dia x 20mm thick Diametrically Magnetised N42 Neodymium Magnet - 8kg Pull
(Inc. VAT)£11.89
(Ex. VAT)
- 20mm x 20mm
- +/-0.1mm tolerance
- 6mm central hole
- North-South poles on opposite curved sides
- Excellent resistance to demagnetisation
- Triple coated
Unusually, diametrically magnetised magnets are not designed to hold the maximum possible weight for the size of the magnet but instead are used to provide rotational movement. A diametrically magnetised magnet is magnetised across its diameter so that the north pole in on one curved side and the south pole is on the opposite curved side. Diametrically magnetised magnets are used on the end of shafts to provide drive.
