20mm dia x 5mm thick North & South Neodymium Countersunk Magnets & Screws Pack
Explore how countersunk magnets can help your application in our handy magnet & application guide!
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.

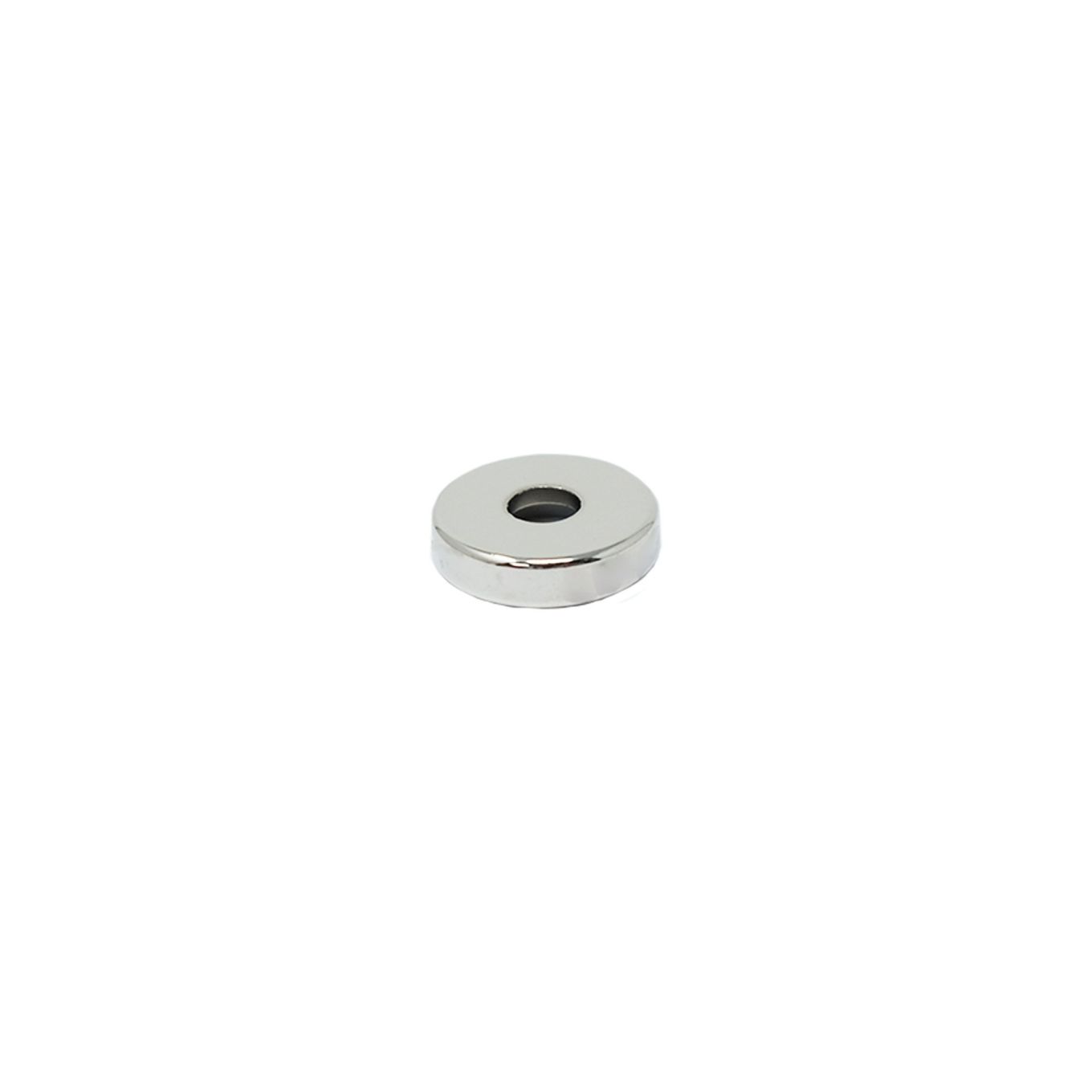

20mm dia x 5mm thick North & South Neodymium Countersunk Magnets & Screws Pack
(Inc. VAT)£70.23
(Ex. VAT)

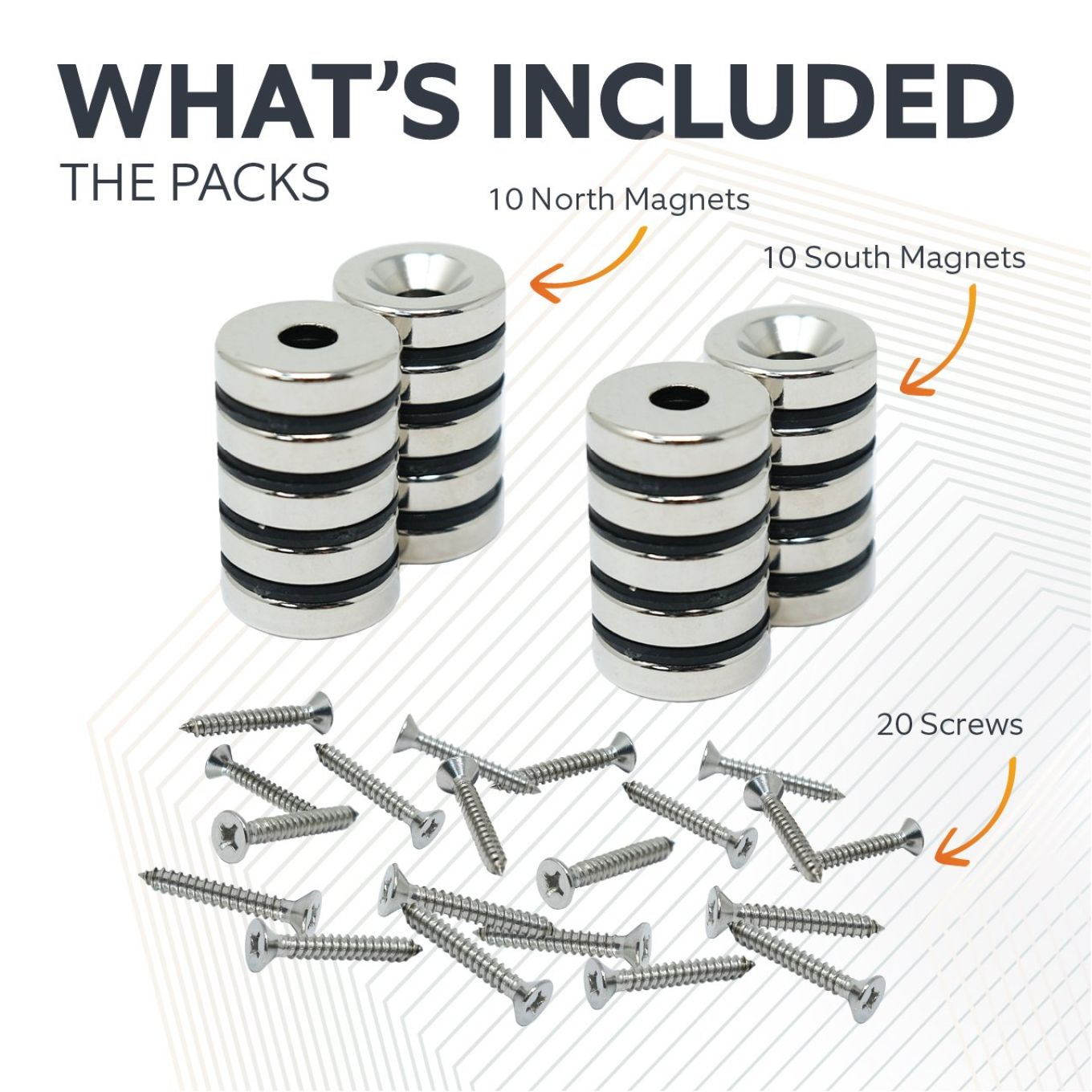

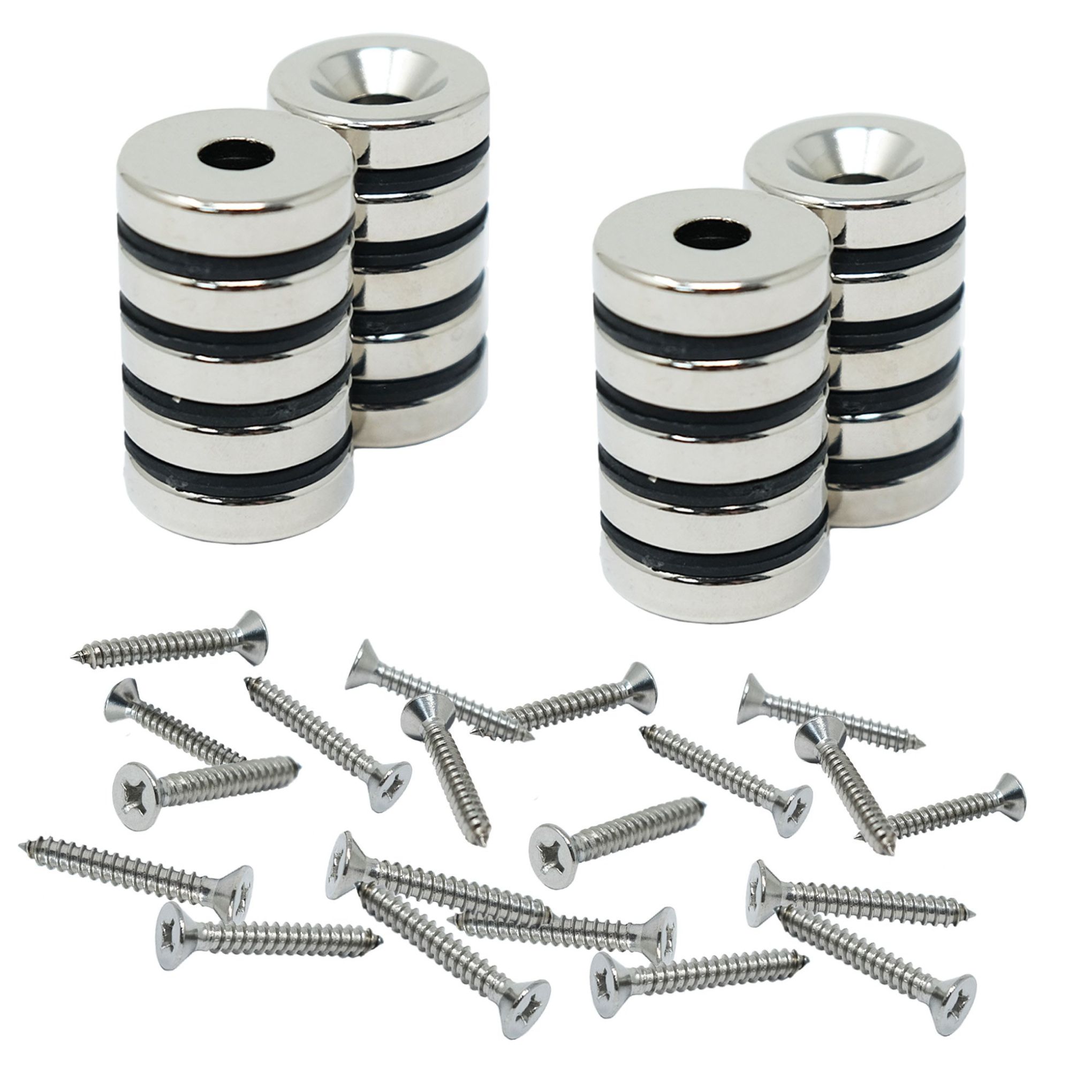

- Pack includes 10 magnets with North pole, 10 magnets with South pole and 20 screws.

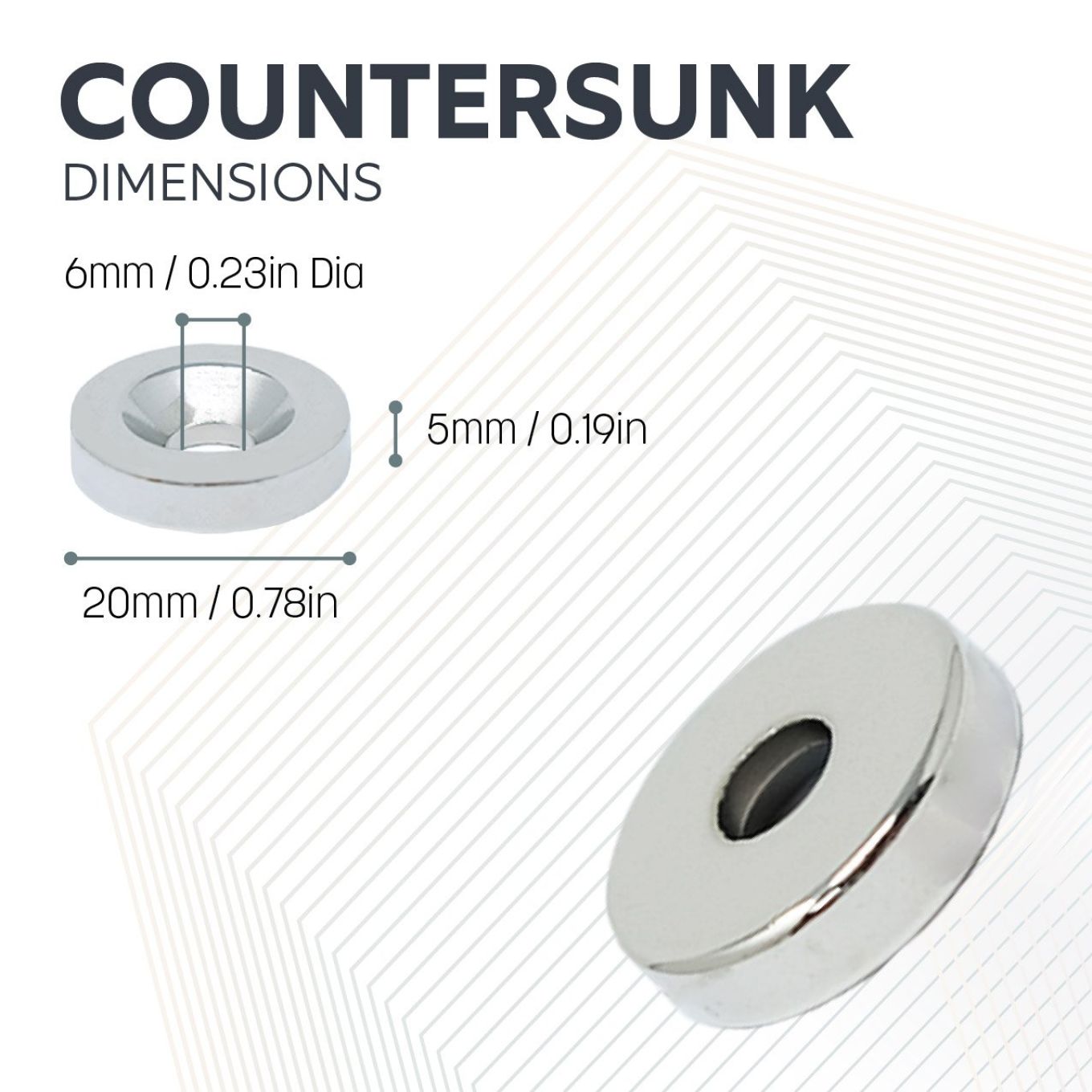

- 20mm diameter x 5mm thick with a 6mm diameter countersunk hole for fixing
- +/-0.1mm tolerance
- Each magnet has its magnetic pole on the countersunk face

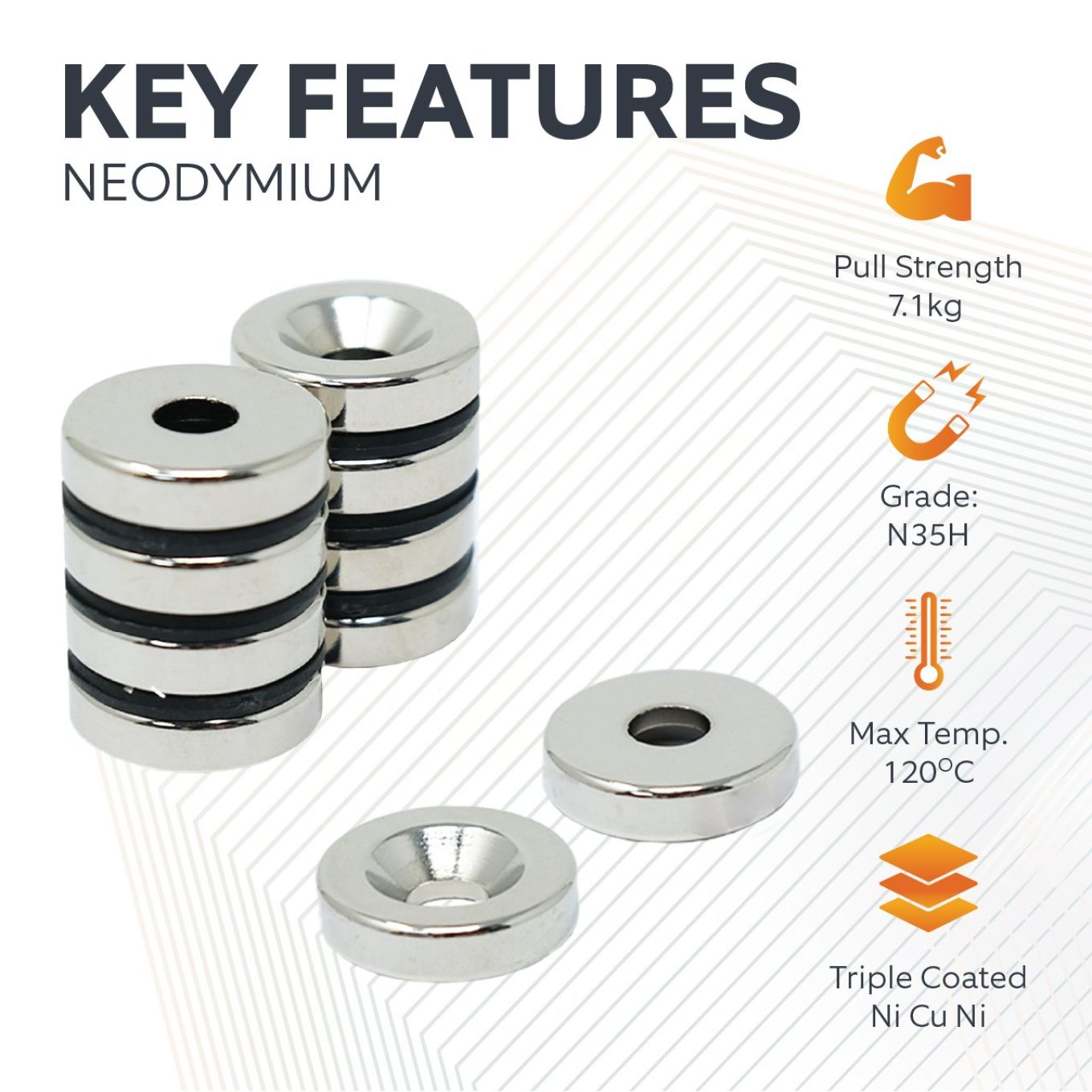

- Each magnet can support 7.1kg pull vertically from the magnetic face when in flush contact with a mild steel surface
- High-temperature grade with a maximum operating temperature of 120 degrees Celsius
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
- Screws are 10.8mm dia head x 5.5mm dia thread x 38mm long
Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Our 20mm x 5mm countersunk circular magnets provide an astonishing magnetic pull for a relatively small magnet. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect.
