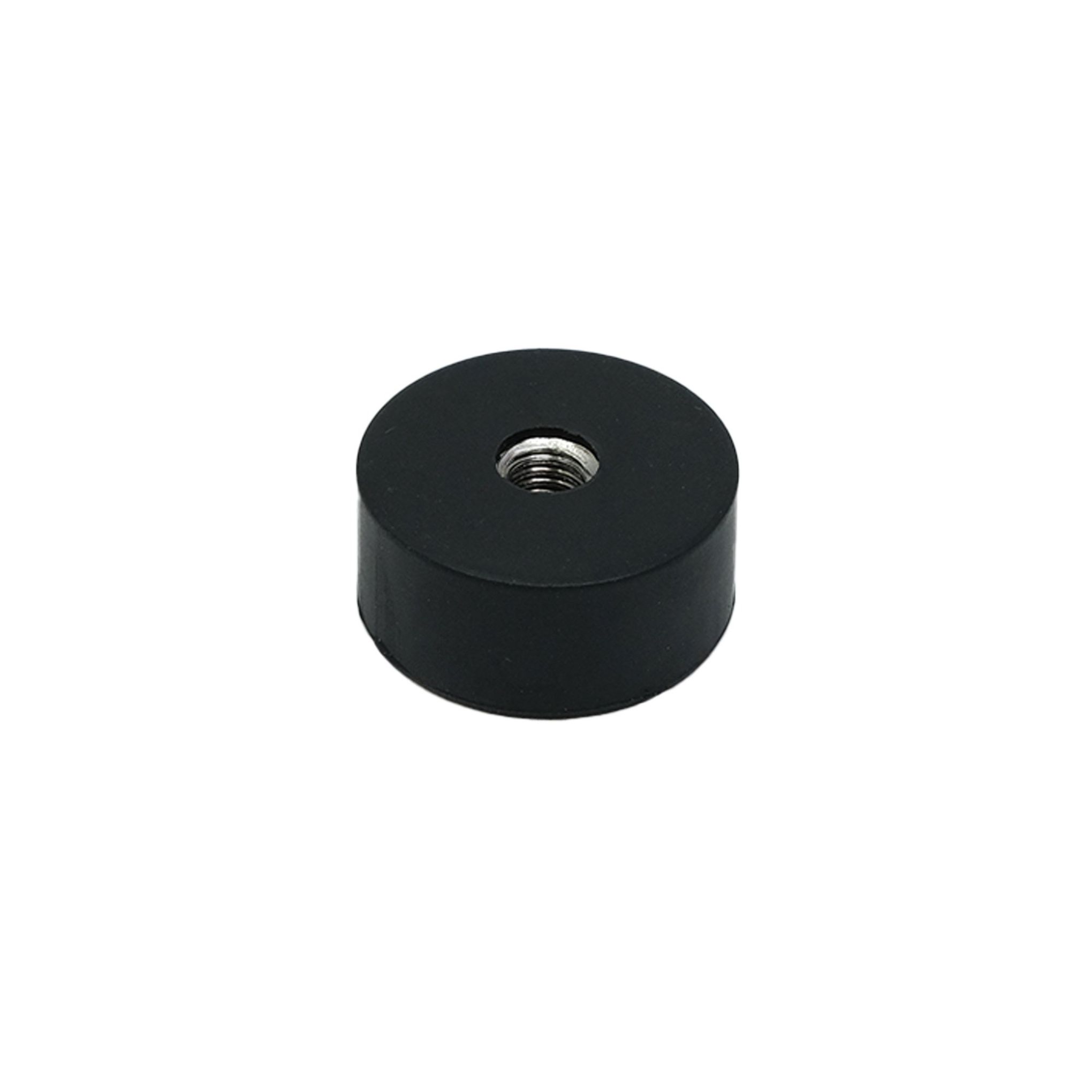

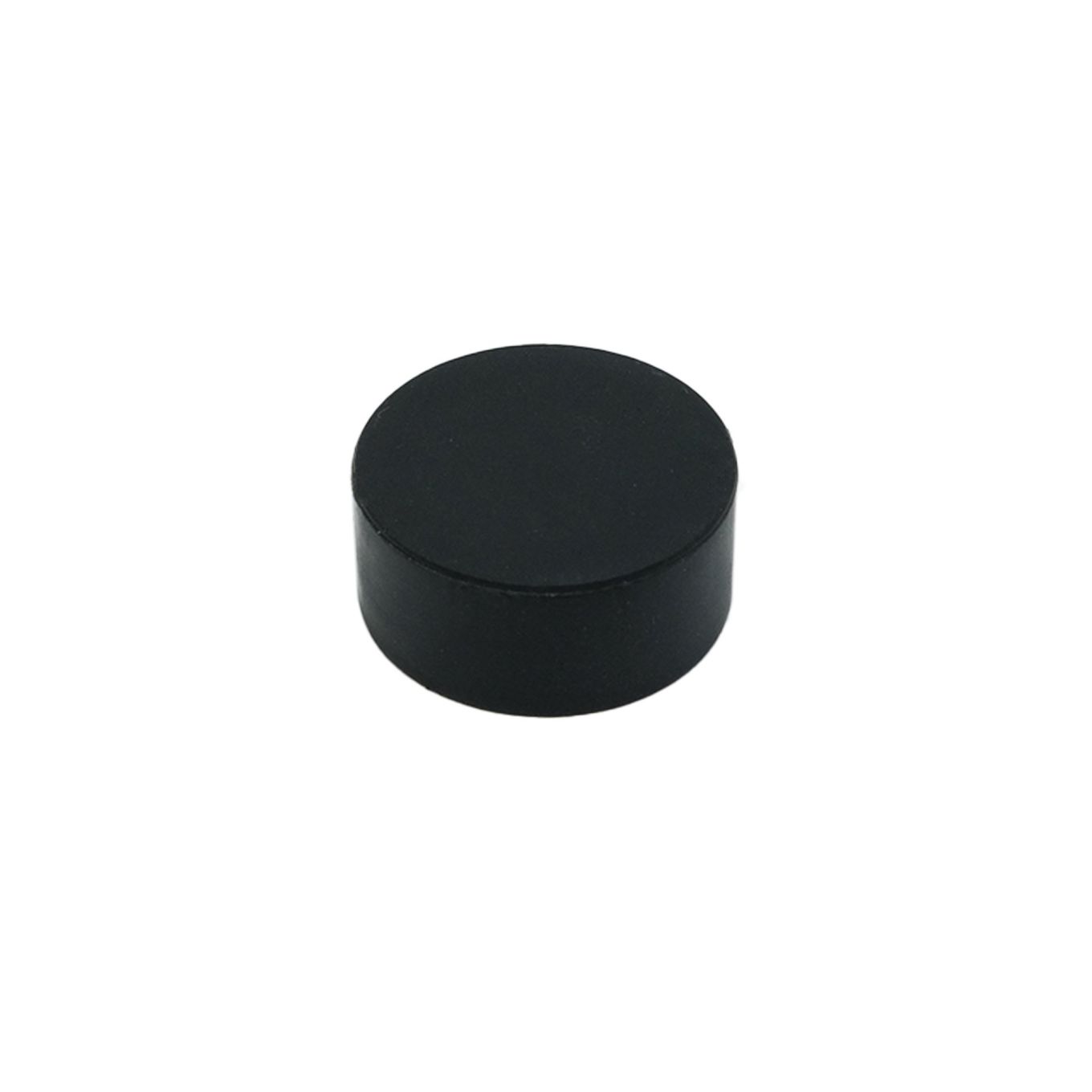

22mm dia x 10mm thick x M5 thread hole Rubber Coated Pot Magnet - 2.6kg Pull

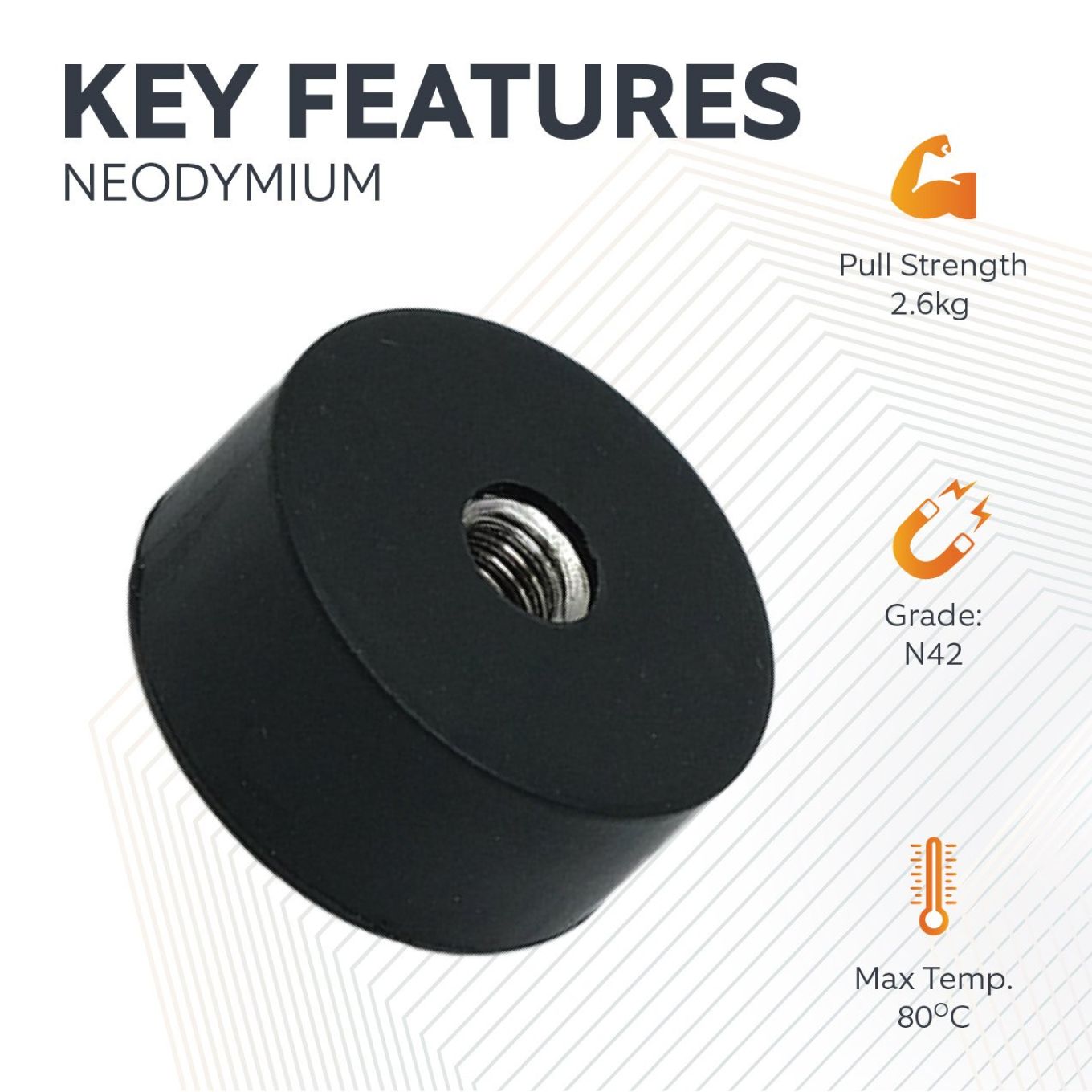

Small and strong, these high-performance, rubber-coated Neodymium (N42) pot magnets have a threaded hole on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
22mm dia x 10mm thick x M5 thread hole Rubber Coated Pot Magnet - 2.6kg Pull
(Inc. VAT)£4.33
(Ex. VAT)

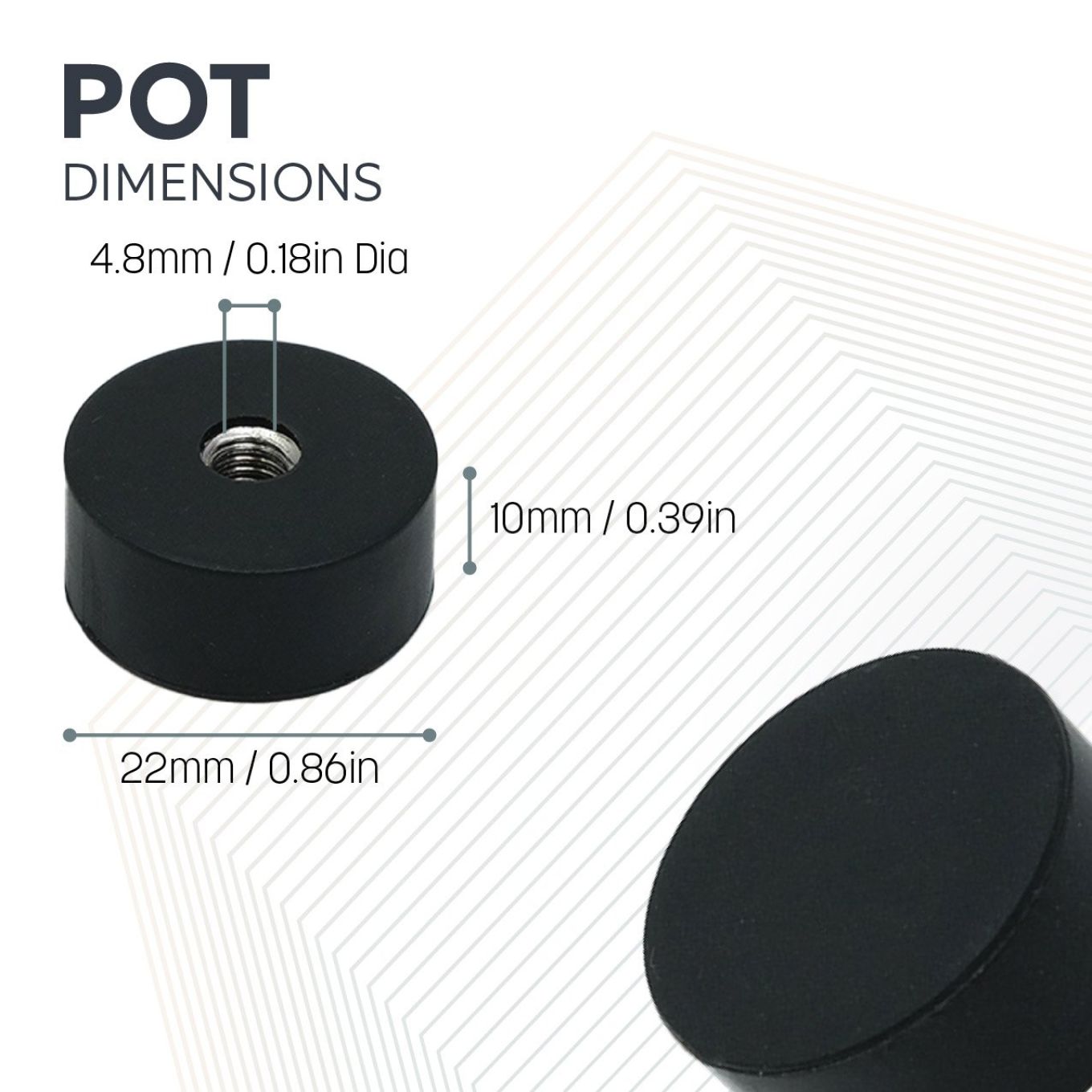

- 22mm diameter x 10mm tall with a M5 mild steel threaded 4.8mm hole
- Each magnet can support 2.6kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness
- +/-0.1mm tolerance
- Rubber-coated to increase friction and prevent marking other contact surfaces
- M5 threaded hole for assembly
Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. Because these magnets have a rubber-coating they are ideal for using to attract fragile or easily marked surfaces, the rubber coating increases friction, softens impacts and prevents marking. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface.
