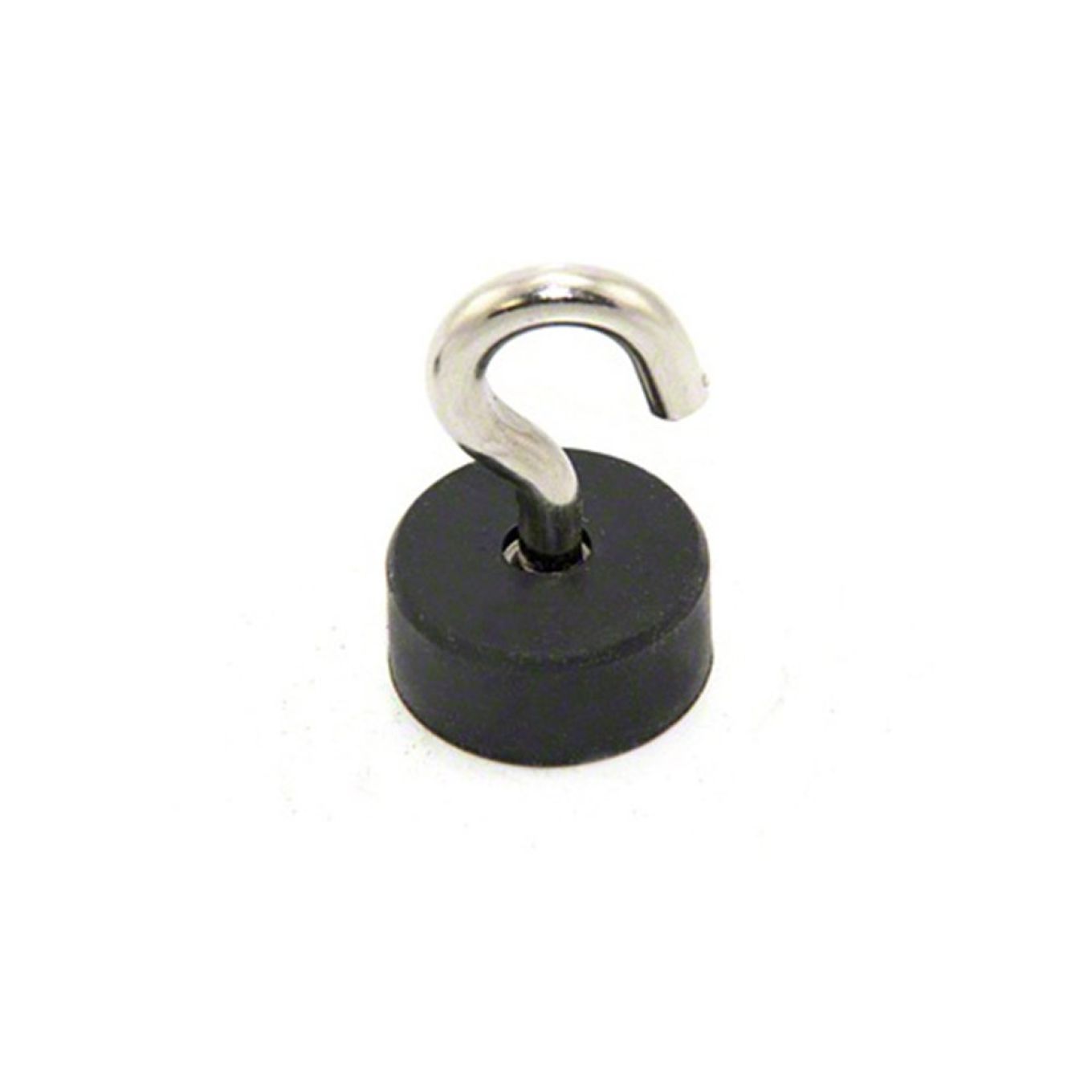

22mm dia x 10mm thick Rubber Coated Pot Magnet with M5 Hook or Eyebolt - 2.81kg Pull
These small but strong, rubber-coated, Neodymium (N42) clamping magnets available with hook or eyebolt attachments provide a really strong clamping force for their size and are ideal for hanging cabling or suspending signs.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
22mm dia x 10mm thick Rubber Coated Pot Magnet with M5 Hook or Eyebolt - 2.81kg Pull
- 22mm diameter x 10mm thick plus eyebolt.
- The internal diameter of the eyebolt is 8mm and is 30mm from the tip of its thread to top.
- +/-0.1mm tolerance.
- Each magnet can support a steel weight of up to 2.18kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Rubber-coated to increase friction and prevent marking other contact surfaces.
- Removable eyebolt with M5 thread.
These are the smallest rubber-coated clamping magnets in our range but still provide an astonishing 4kg clamping force for their size. These Neodymium magnets are sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. Because these magnets have a rubber-coating they are ideal for using to attract fragile or easily marked surfaces, the rubber coating increases friction, softens impacts and prevents marking. An added advantage of these magnets is that they are resistant to chipping or cracking following constant impact with a steel surface.
