25mm dia Neodymium Pot Magnets, Steel Discs & Screws Pack
(Inc. VAT)£54.81
(Ex. VAT)

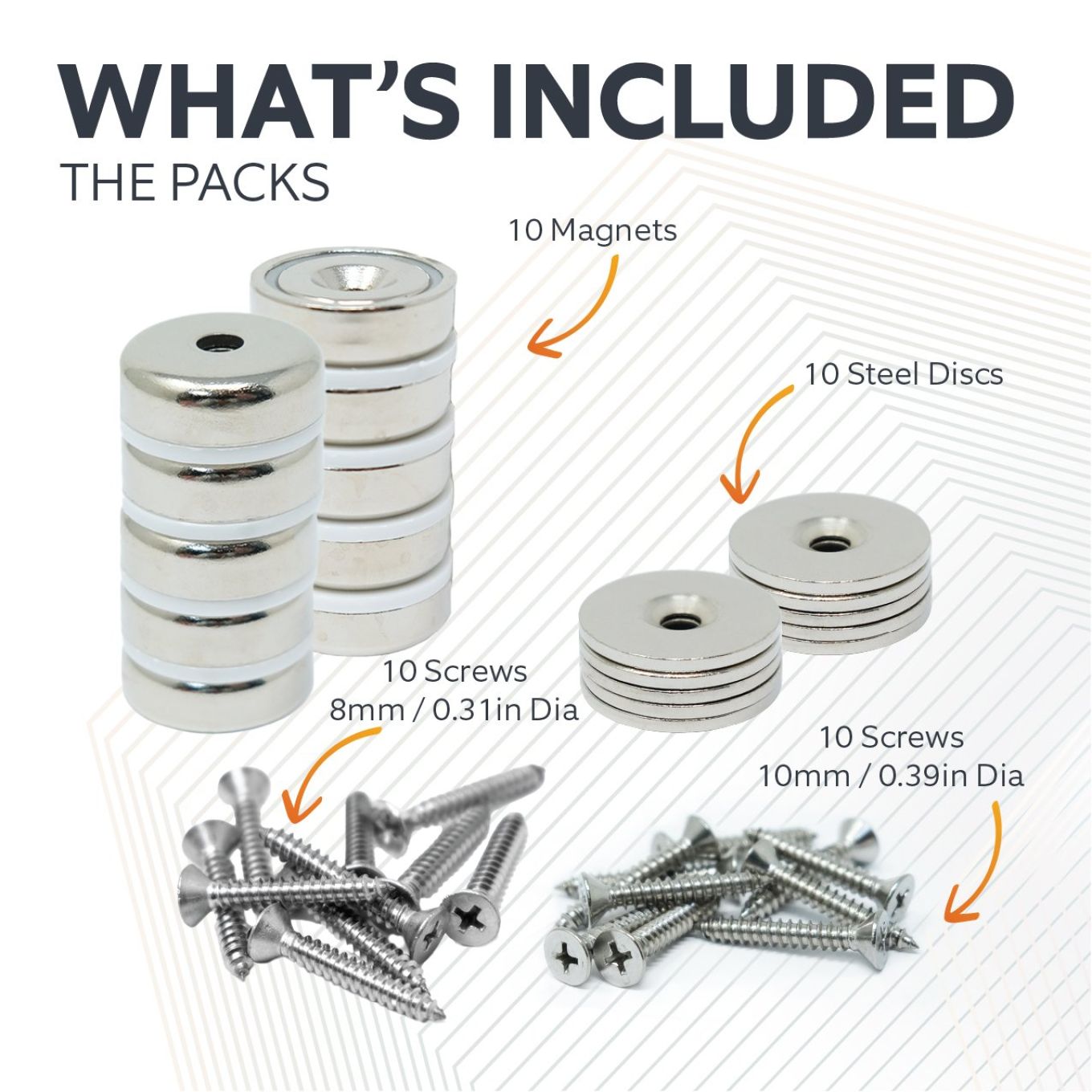

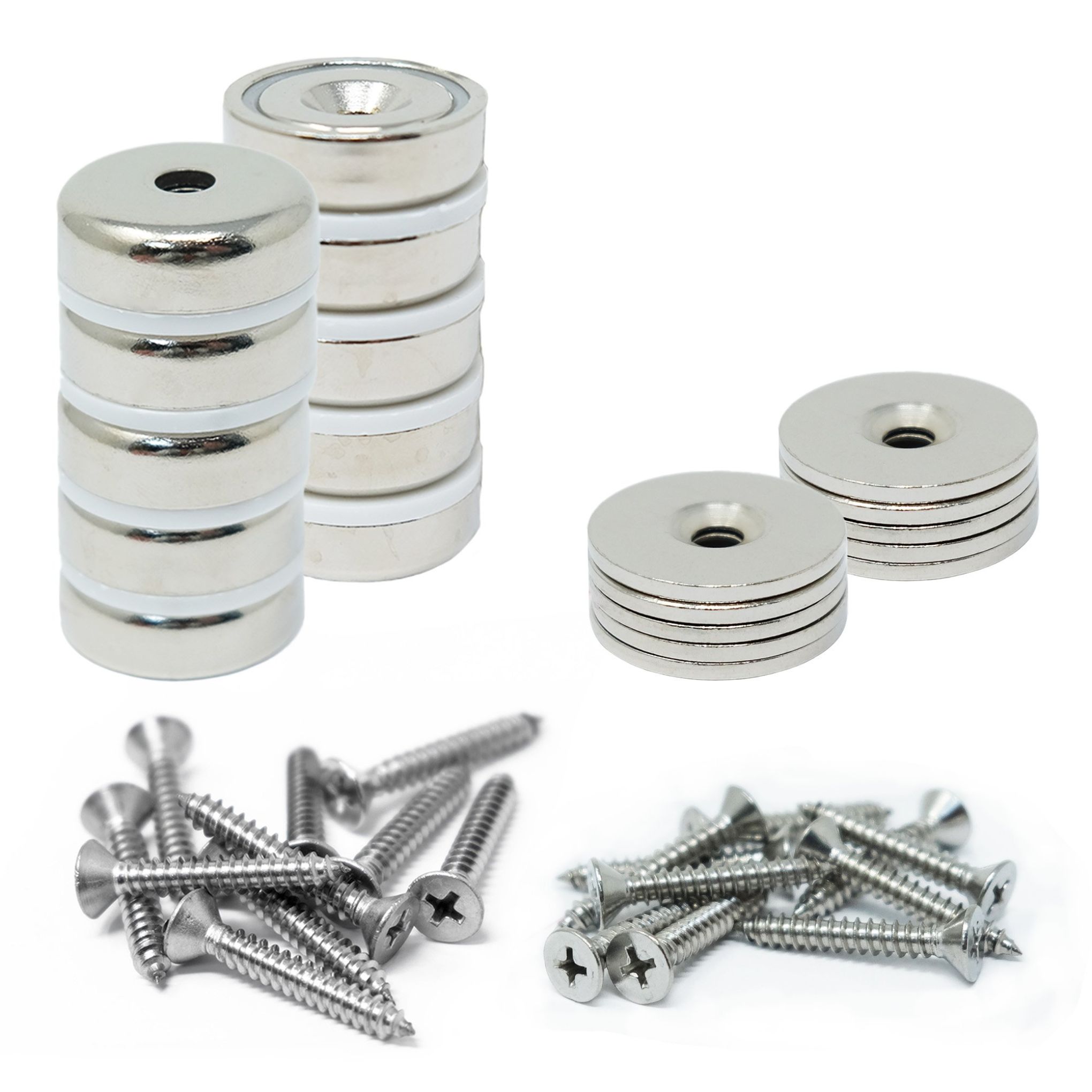

- Pack includes 10 magnets, 10 steel discs and 20 screws

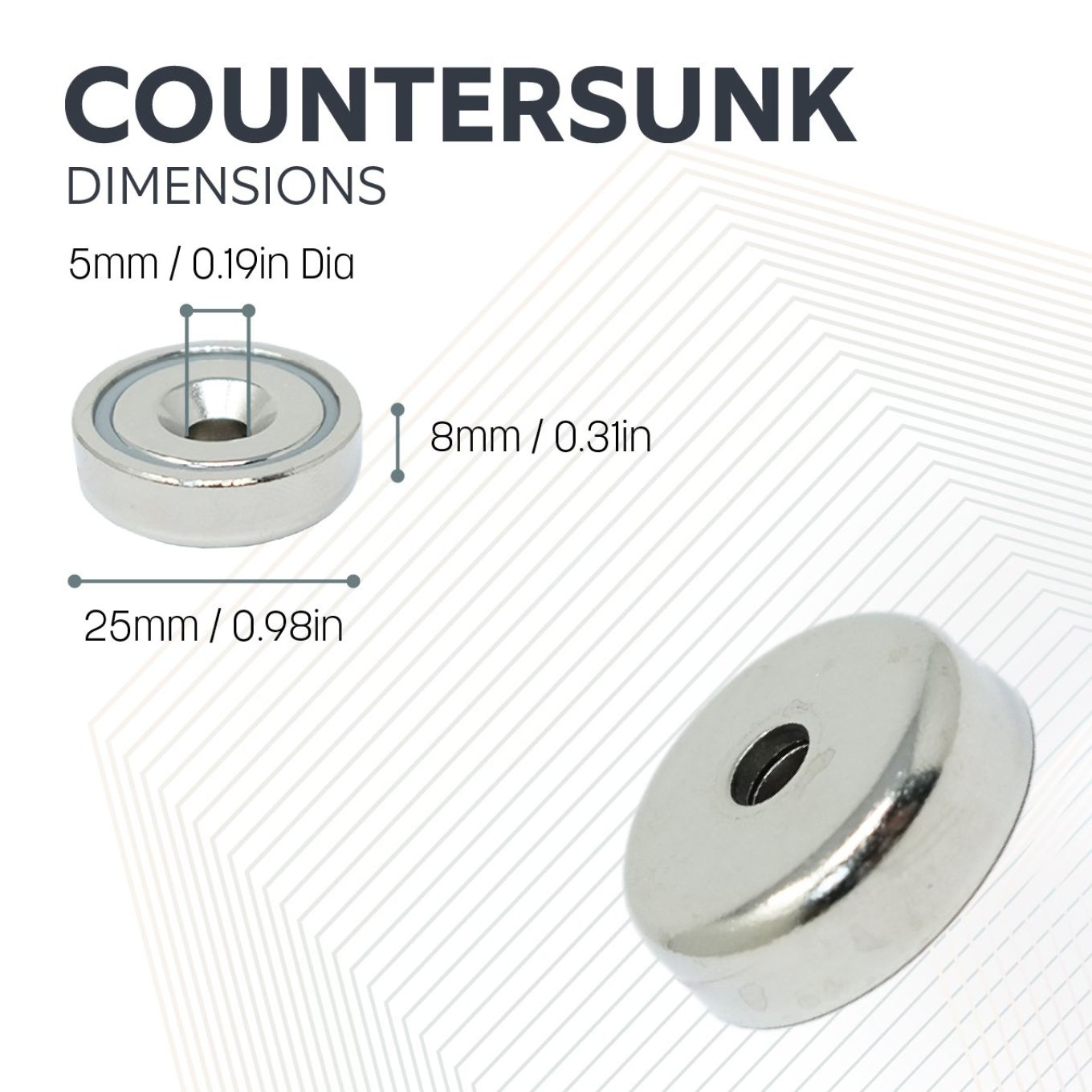

- 25mm diameter x 8mm thick with a 5mm diameter countersunk hole for fixing
- +/-0.1mm tolerance
- Each magnet is only magnetic on the countersunk face
- Each magnet can support 26kg pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
- Screws are 10mm dia head x 4.8mm dia thread x 32mm long & 8mm dia head x 3.9mm dia thread x 19mm long
Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets are countersunk on the magnetic face and can be fixed to a surface with a 5mm screw, pot magnets are also available with boreholes and threaded studs.
