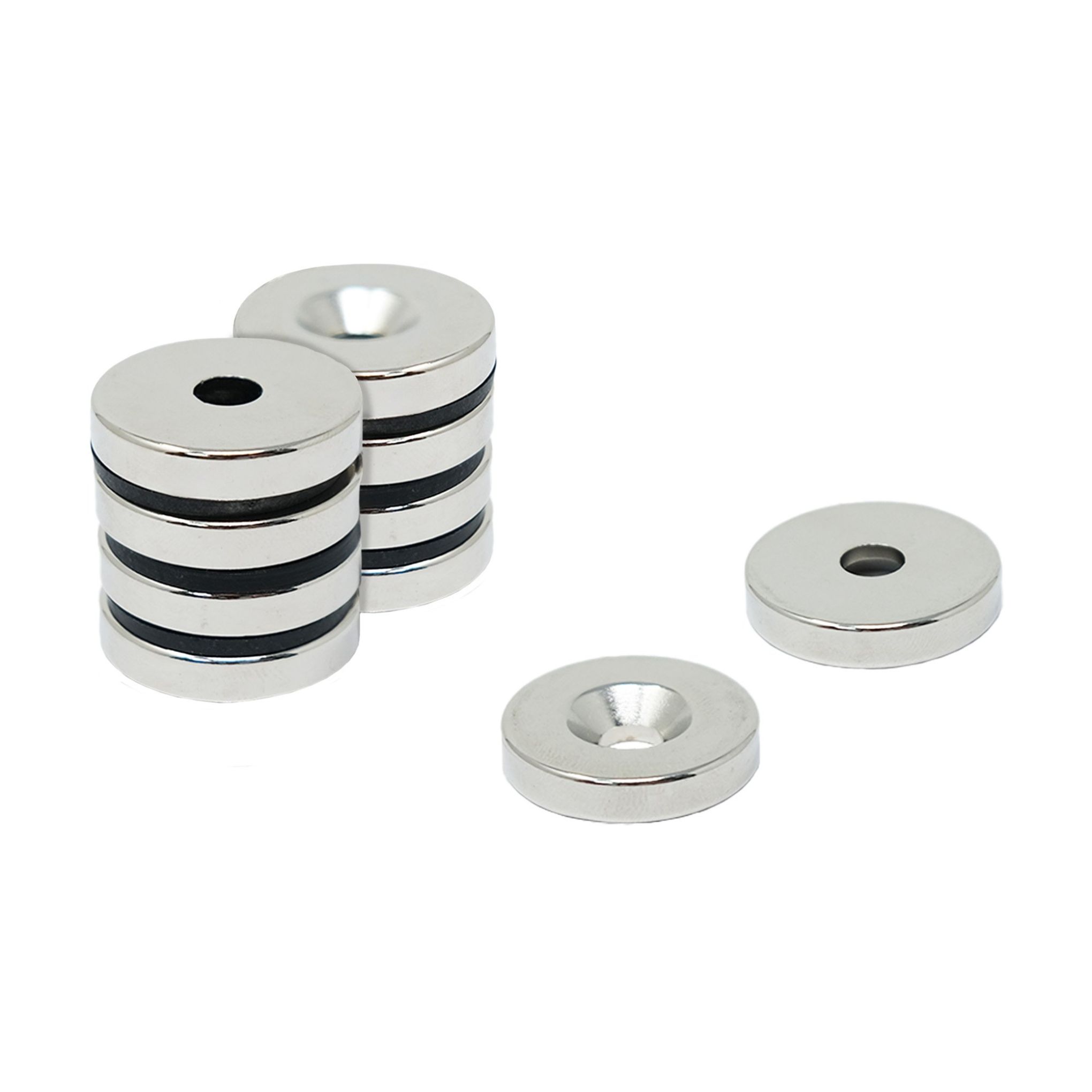

25mm dia x 5mm thick x 6mm c/sink Neodymium Magnet - 11.2kg Pull

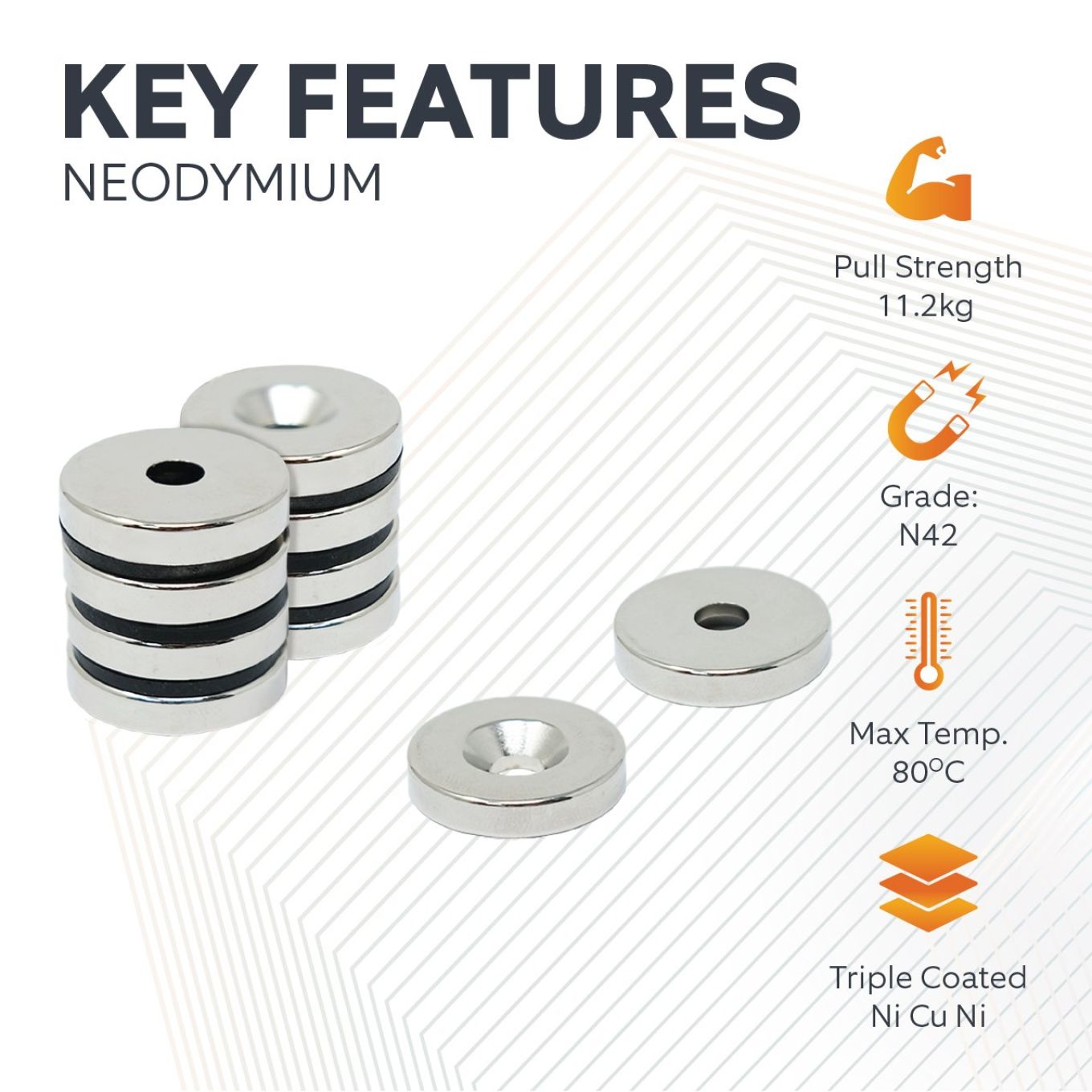

High-performance countersunk Neodymium (N42) magnet, available with either pole on the countersunk face. Compact but incredibly strong.
Pack quantity 1: 1 Countersunk magnet
Explore how countersunk magnets can help your application in our handy magnet & application guide!
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
25mm dia x 5mm thick x 6mm c/sink Neodymium Magnet - 11.2kg Pull
(Inc. VAT)£5.00
(Ex. VAT)

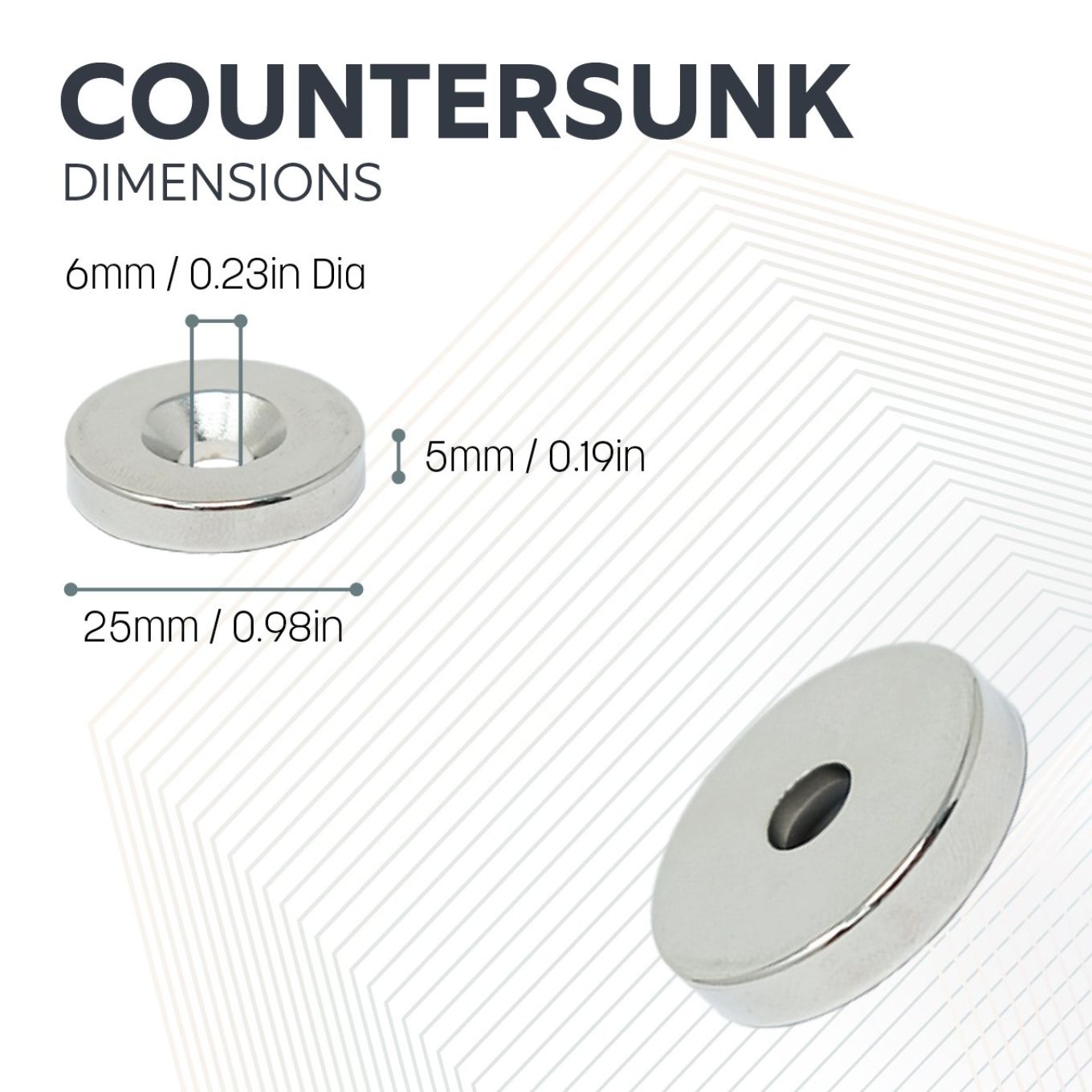

- 25mm diameter x 5mm thick with a 6mm diameter countersunk hole for fixing
- +/-0.1mm tolerance
- Each magnet has its magnetic pole on the countersunk face
- Each magnet can support 11.2kg pull vertically from the magnetic face when in flush contact with a mild steel surface
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
- Screws are 10.8mm dia head x 5.5mm dia thread x 38mm long
Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Because of their superb strength these 25mm x 5mm countersunk circular magnets are also used in recovery and retrieval applications, providing an astonishing magnetic pull for a relatively small magnet. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect. Also available with the north pole on the countersunk face.
