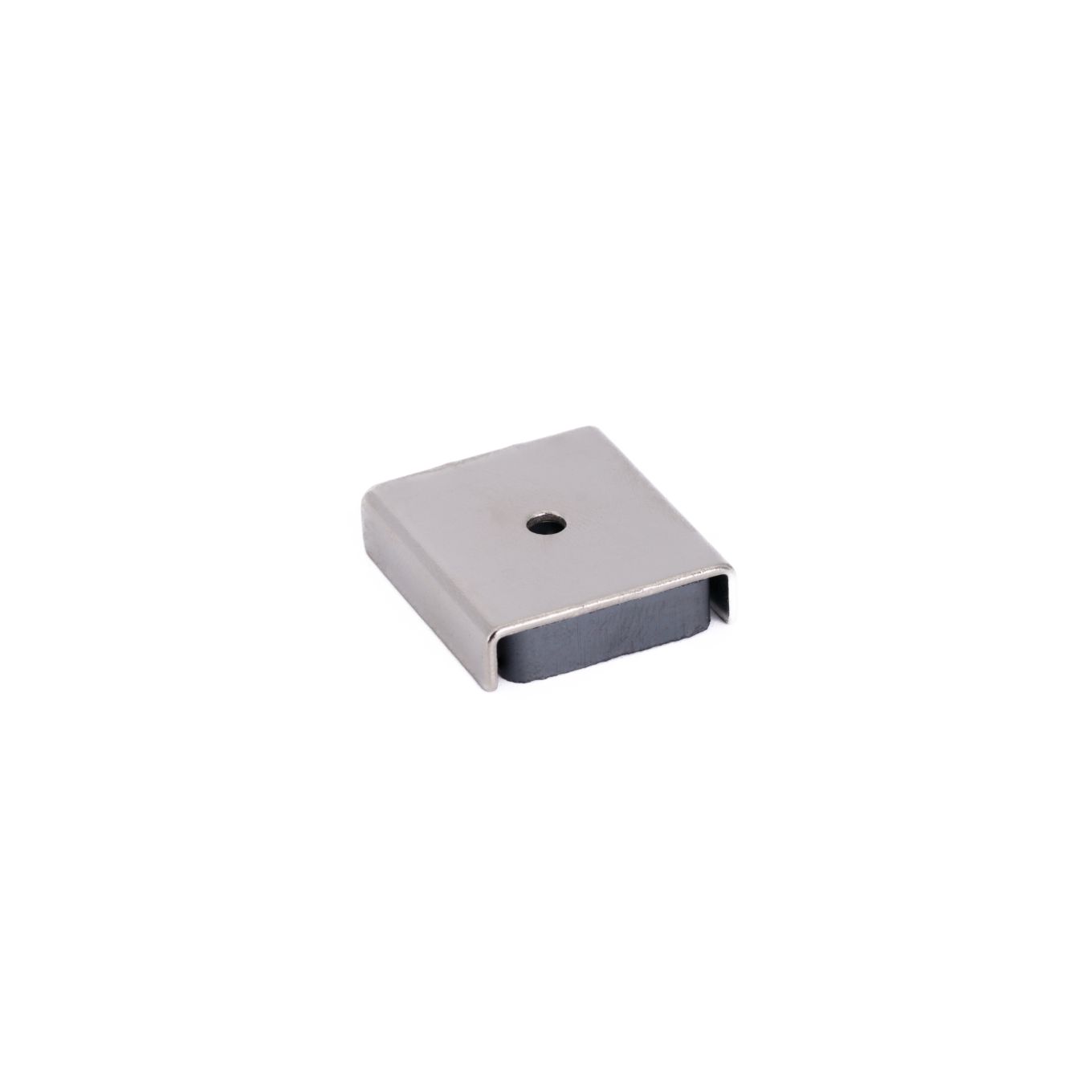

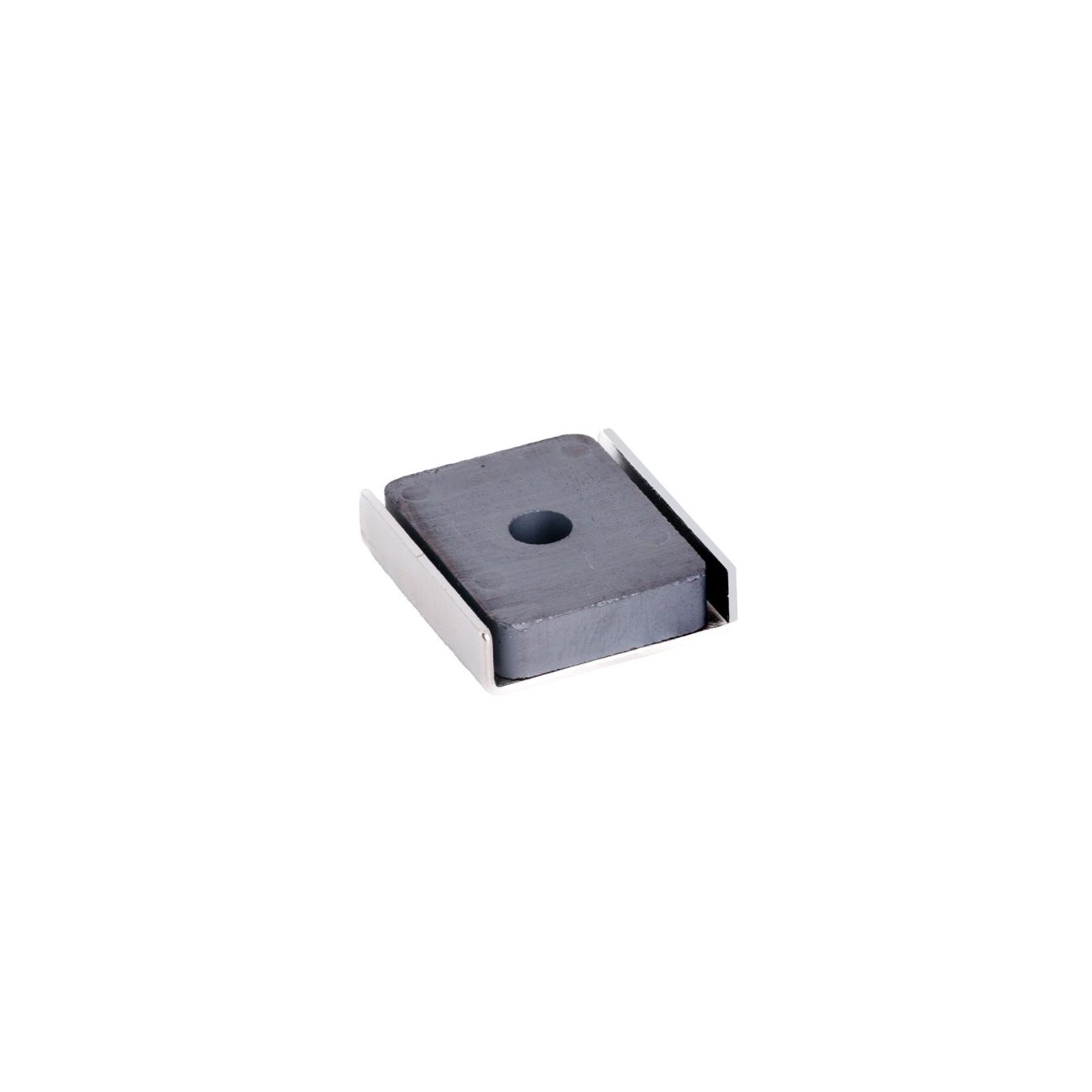

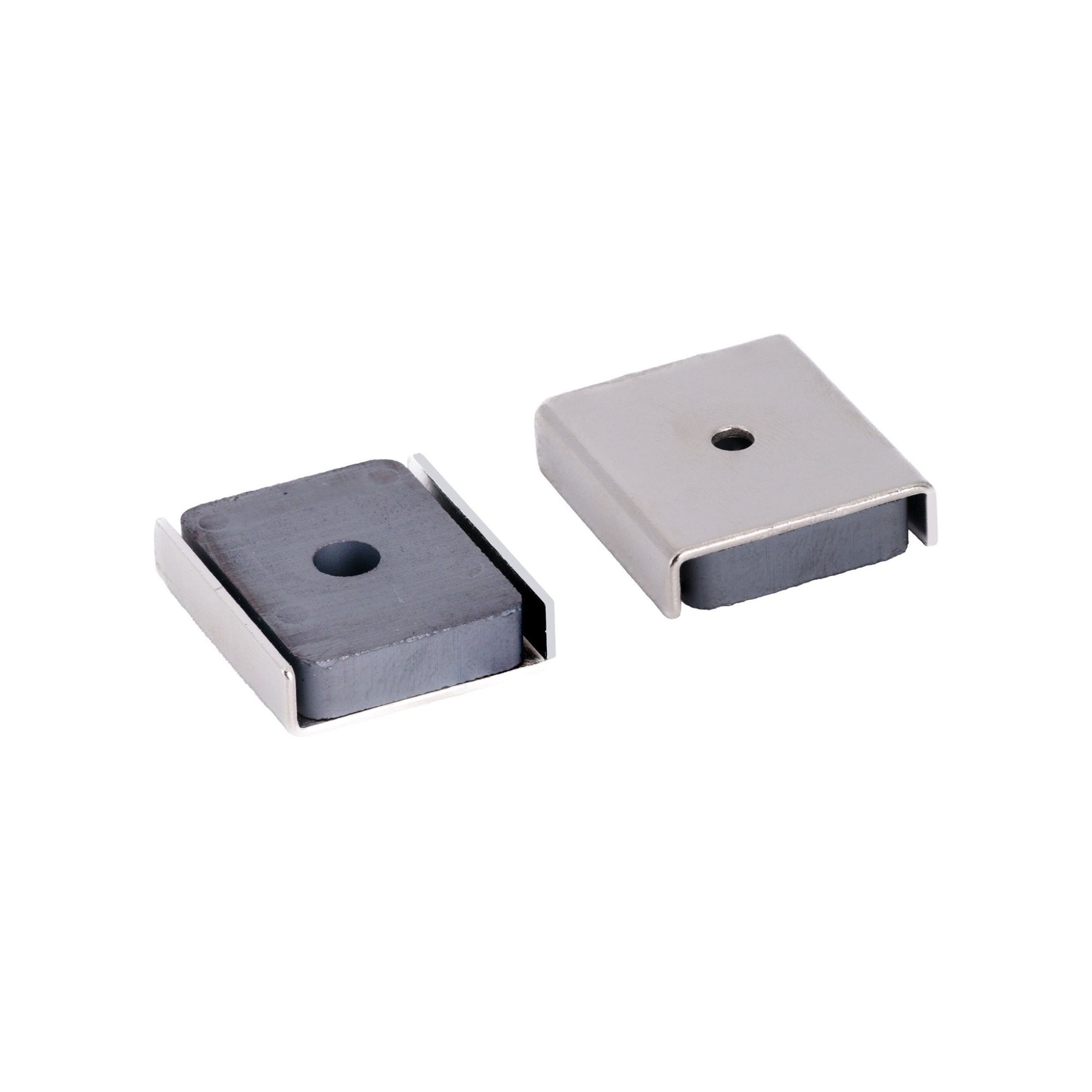

26 x 23 x 6.3mm thick (x 3mm hole) Ferrite Channel Magnet - 6.1kg Pull
Ferrite (Y30BH) steel-cased channel magnet with central fixing hole - this innovative design provides 6.1kg vertical pull at great value.
Pack quantity 1: 1 Channel magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
26 x 23 x 6.3mm thick (x 3mm hole) Ferrite Channel Magnet - 6.1kg Pull
(Inc. VAT)£1.58
(Ex. VAT)

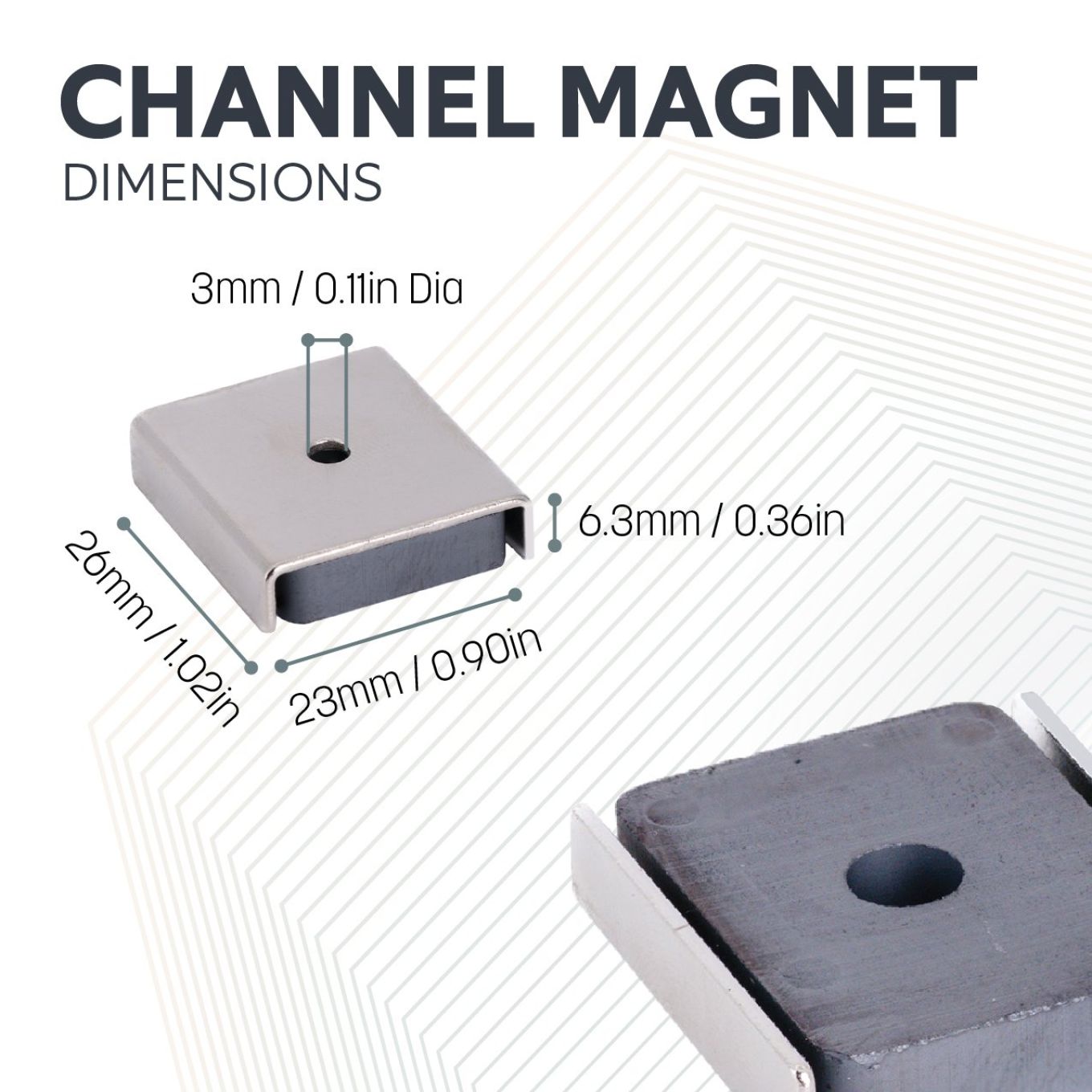

- 26mm x 23mm x 6.3mm with 3mm hole
- Rivet Fixing for 2mm Screw

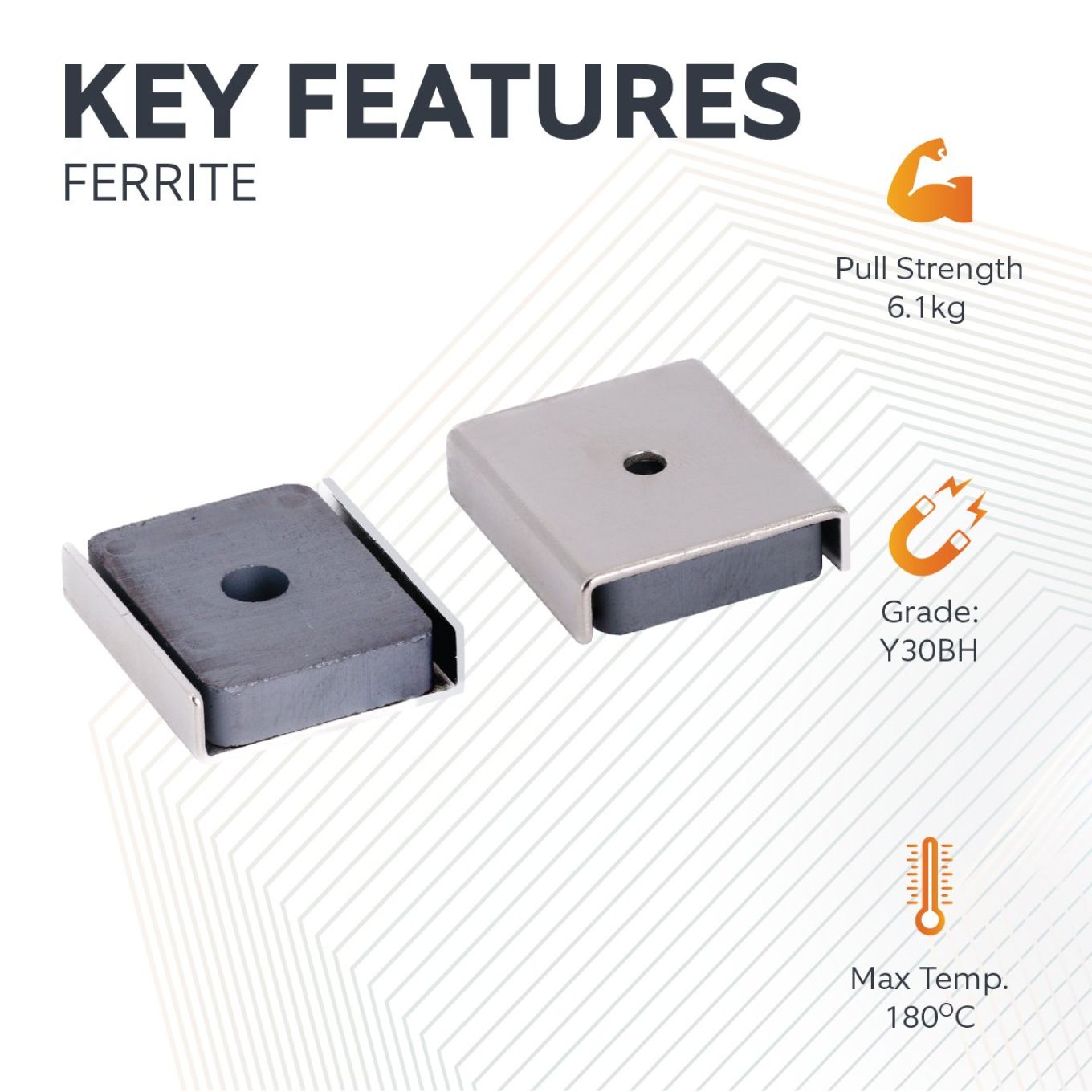

- Innovative rectangular design encased and glued within a steel casing which greatly increases performance.
- The magnet's north pole is on the centre of the magnet's face with the south pole on the outer edge meaning both poles are on the same face
- 6.1kg maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet
- Resistant to corrosion so no extra coating required
These channel magnets offer excellent value with a maximum pull strength of 6.1kg. The innovative channel design with steel casing greatly increases performance. Each magnet can be screwed into place using a 3mm screw and has a maximum operating temperature of 180oC. They are commonly used around the home and for holding machine parts in place.
