High-performance Neodymium (N42) disc magnet. These extremely strong disc magnets have the second largest diameter in our range.
Ideal for engineering, manufacturing, fixtures, displays, furniture, product design, model making and custom magnetic assemblies where strong magnetic performance is required in a slim profile.

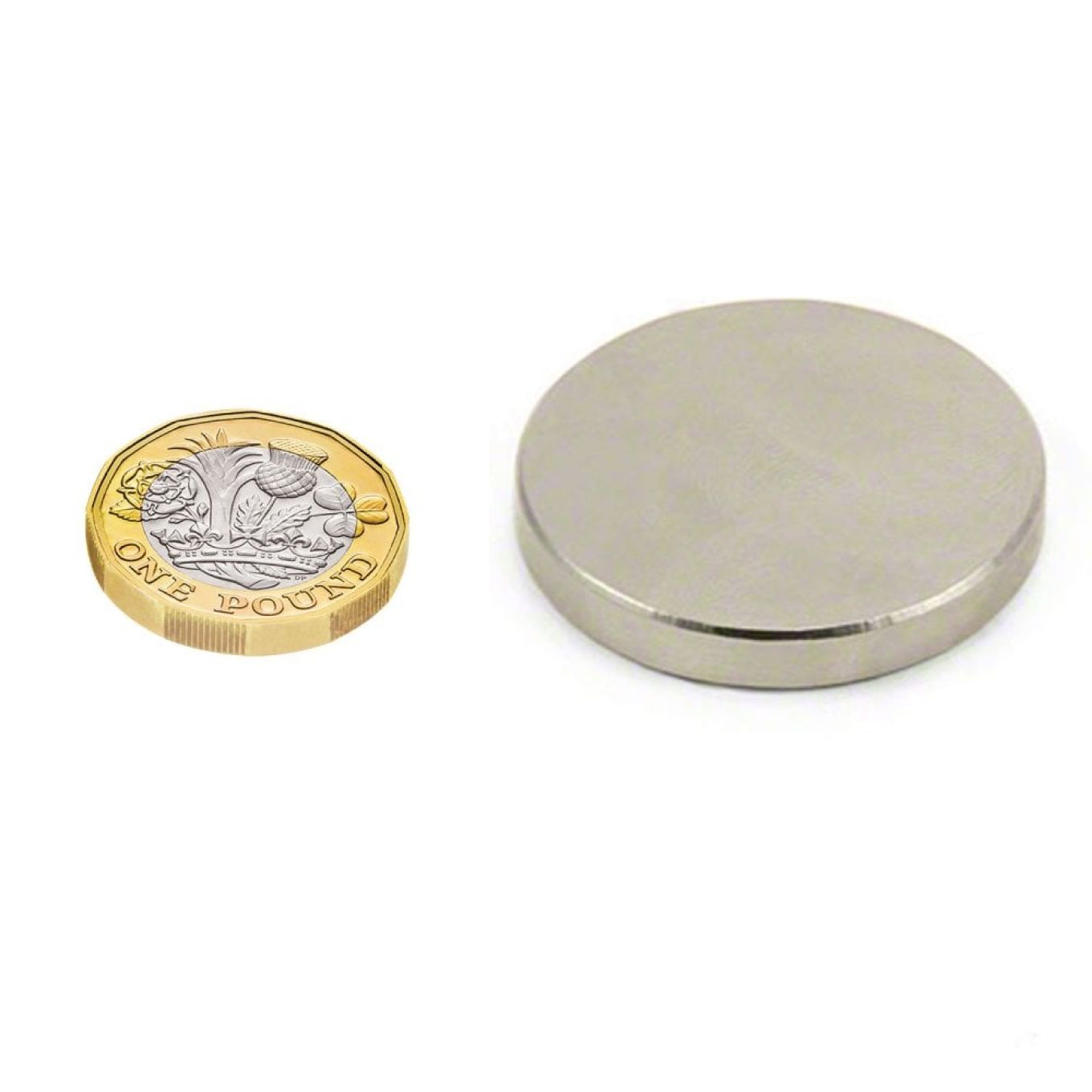

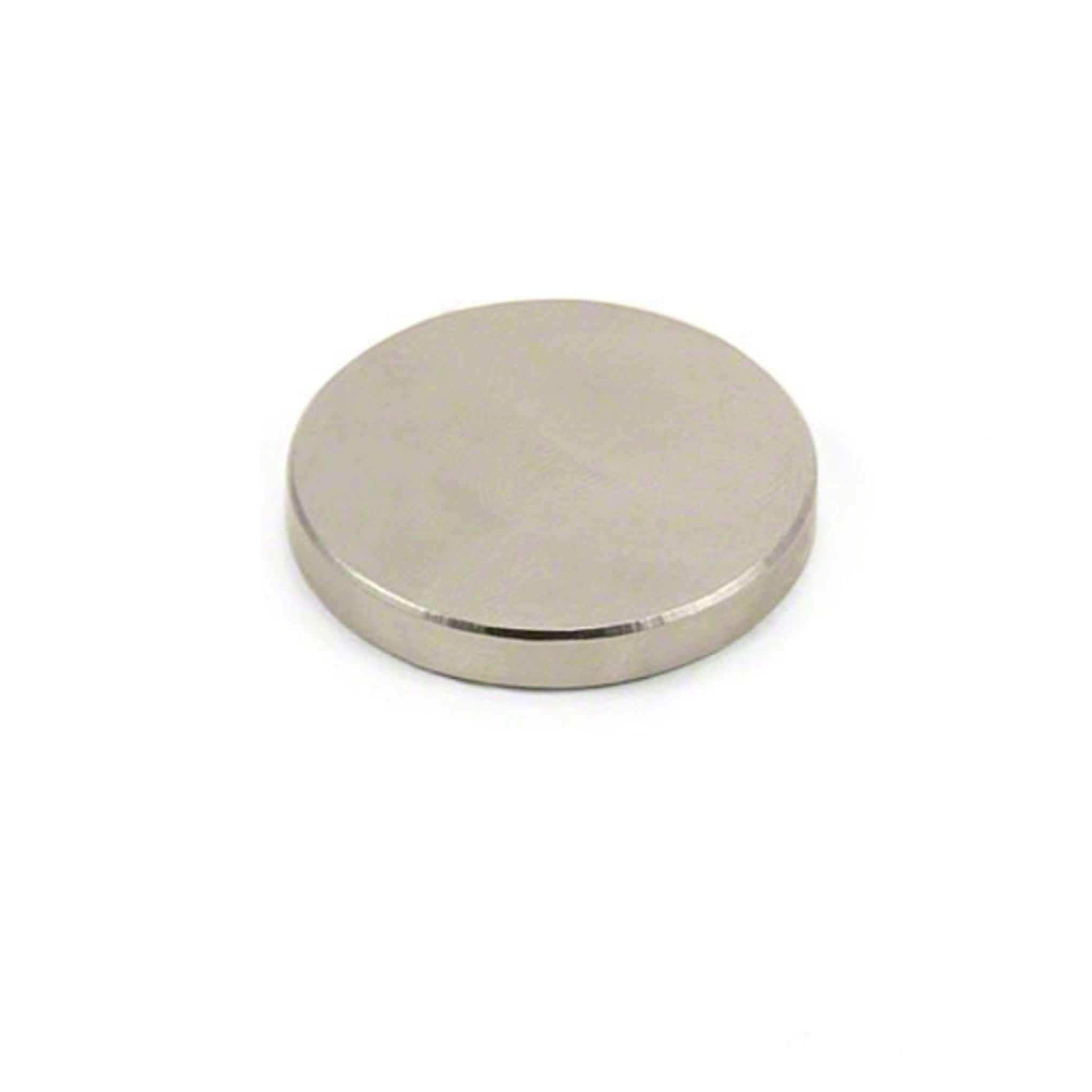

35mm dia x 5mm thick N42 Neodymium Magnet - 13.6kg Pull
(Inc. VAT)£11.20
(Ex. VAT)
- 35mm diameter x 5mm thick
- Each magnet's north and south pole are on opposite 35mm diameter faces
- Excellent resistance to demagnetisation
- Each magnet is coated with three layers of nickel, copper and nickel to improve corrosion resistance and provide a smooth and clean finish
Combining powerful magnetic performance with a slim 5mm profile, this N42 neodymium disc magnet is a versatile choice for engineering, manufacturing, product design and a wide range of custom magnetic applications.
Measuring 35mm in diameter and just 5mm thick, each magnet provides up to 13.6kg of pull force when in direct contact with a suitable steel surface. Its relatively large magnetic face and slim profile make it particularly useful where strong magnetic attraction is required without the depth of a larger magnet or magnetic assembly.
The north and south poles are located on the opposite 35mm diameter faces, allowing the magnets to be used for attraction to ferrous surfaces or in magnet-to-magnet applications.
Manufactured from high-performance N42 grade neodymium, the magnet offers excellent resistance to demagnetisation and is capable of operating at temperatures up to 80°C.Each magnet is protected by a triple-layer nickel-copper-nickel (Ni-Cu-Ni) coating, providing a smooth, clean finish and improved resistance to corrosion.
For permanent installation, the flat disc shape also makes the magnet suitable for bonding into recesses, components and custom assemblies using an appropriate adhesive.
