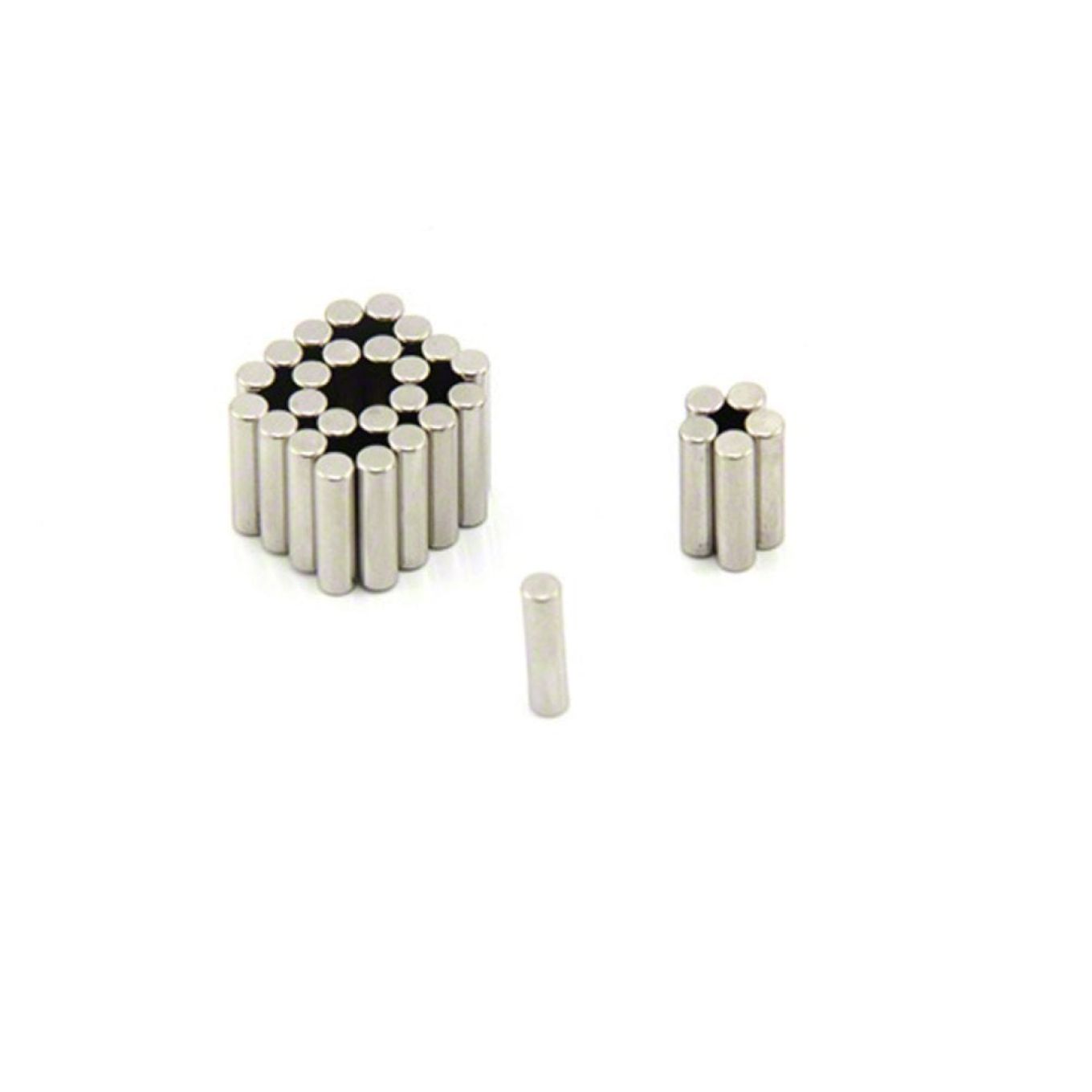

3mm dia x 12mm thick Diametrically Magnetised N42 Neodymium Magnet 0.6kg Pull
High-performance, diametrically magnetised Neodymium (N42) small, rod magnet. These diametrically magnetised magnets have their north and south pole on opposite curved sides, cutting the flat surface in half. - 0.6kg Pull
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
3mm dia x 12mm thick Diametrically Magnetised N42 Neodymium Magnet 0.6kg Pull
(Inc. VAT)£9.10
(Ex. VAT)
- 3mm x 12mm
- +/-0.1mm tolerance
- Excellent resistance to demagnetisation
- Triple coated
- 0.6kg Pull
Unusually, diametrically magnetised magnets are not designed to hold the maximum possible weight for the size of the magnet but instead are used to provide rotational movement. A diametrically magnetised magnet is magnetised across its diameter so that the north pole in on one curved side and the south pole is on the opposite curved side. Diametrically magnetised magnets are used on the end of shafts to provide drive. They can also be used to produce a magnetic rack and pinion system by using a line of north and south in alternating polarities. It is also possible to use diametrically magnetised magnets for reed switch applications.
