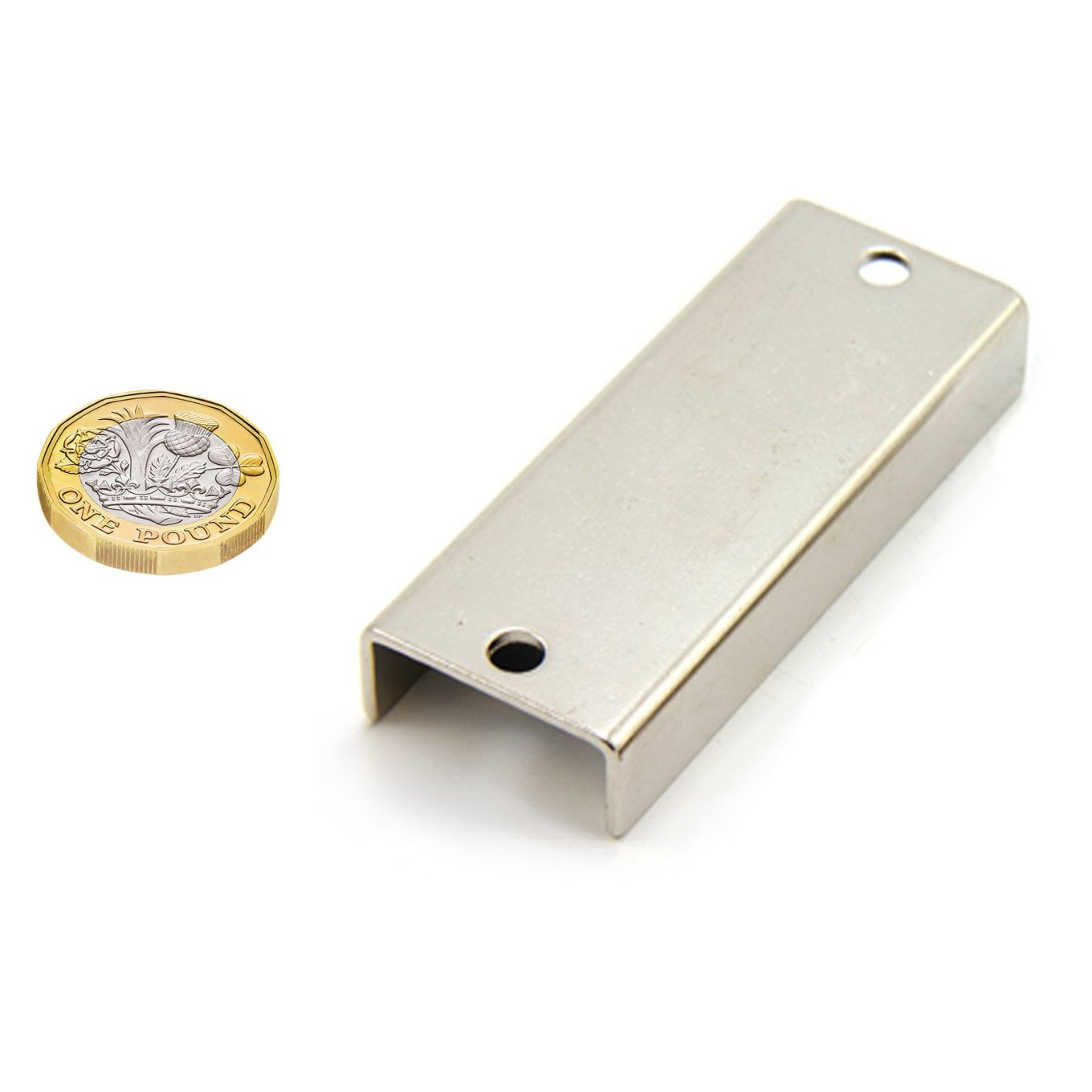

69 x 27 x 11.8mm thick (x 5mm hole) Ferrite Channel Magnet - 10kg Pull
Ferrite (Y30BH) steel-cased channel magnet with fixing holes at each end - this innovative design provides 10kg vertical pull at great value.
Pack quantity 1: 1 Channel magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
69 x 27 x 11.8mm thick (x 5mm hole) Ferrite Channel Magnet - 10kg Pull
(Inc. VAT)£1.86
(Ex. VAT)
- 69mm x 27mm x 11.8mm with two 5mm holes

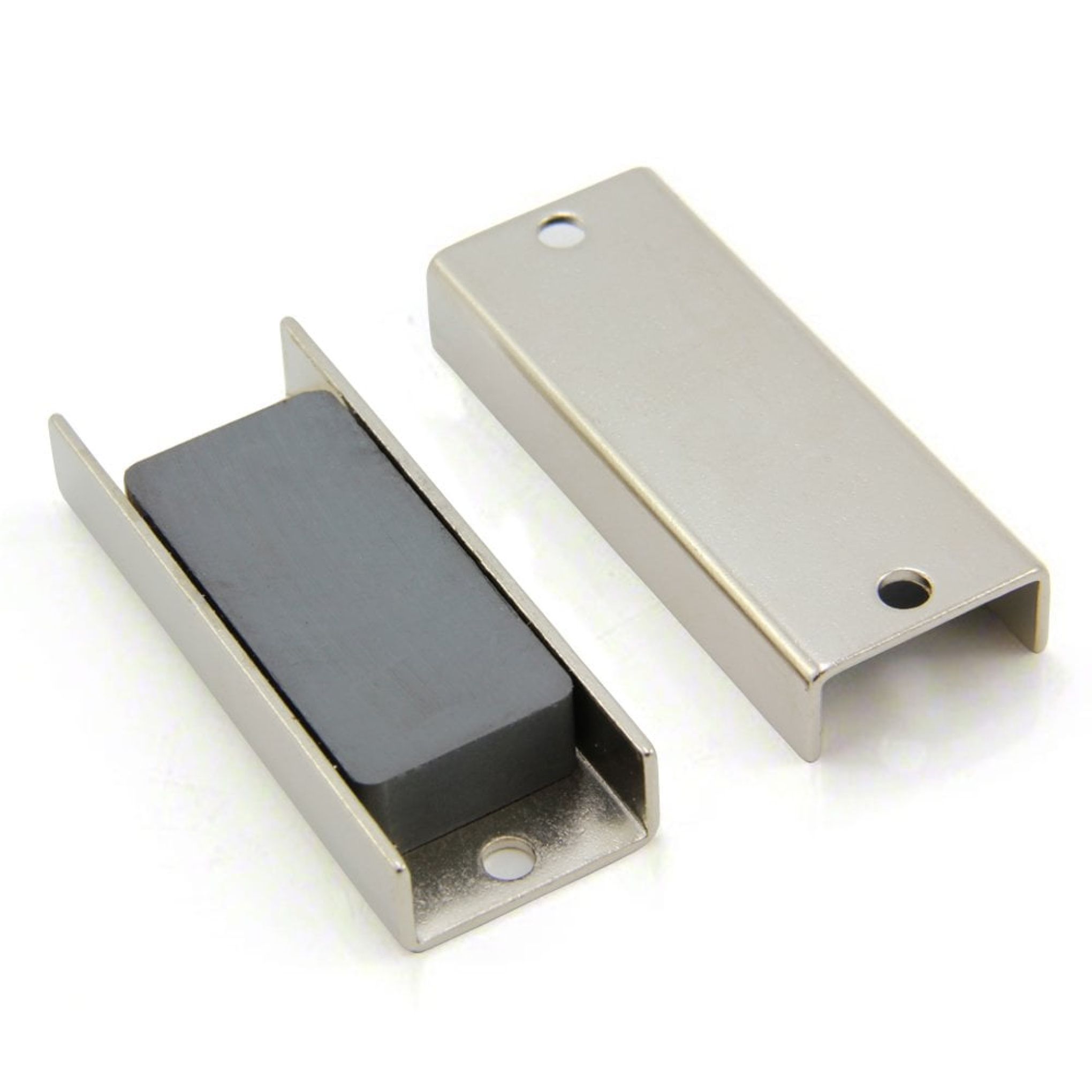

- Innovative rectangular design with steel casing which greatly increases performance
- The magnet's North pole is on the centre of the magnet's face with the South pole on the outer edge meaning both poles are on the same face
- 10kg maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet
- Resistant to corrosion so no extra coating required
These channel magnets offer excellent value with a maximum pull strength of 10kg. The innovative channel design with steel casing greatly increases performance. Each magnet can be screwed into place using two 5mm screws and has a maximum operating temperature of 180 degrees Celsius. They are commonly used around the home and for holding machine parts in place.
