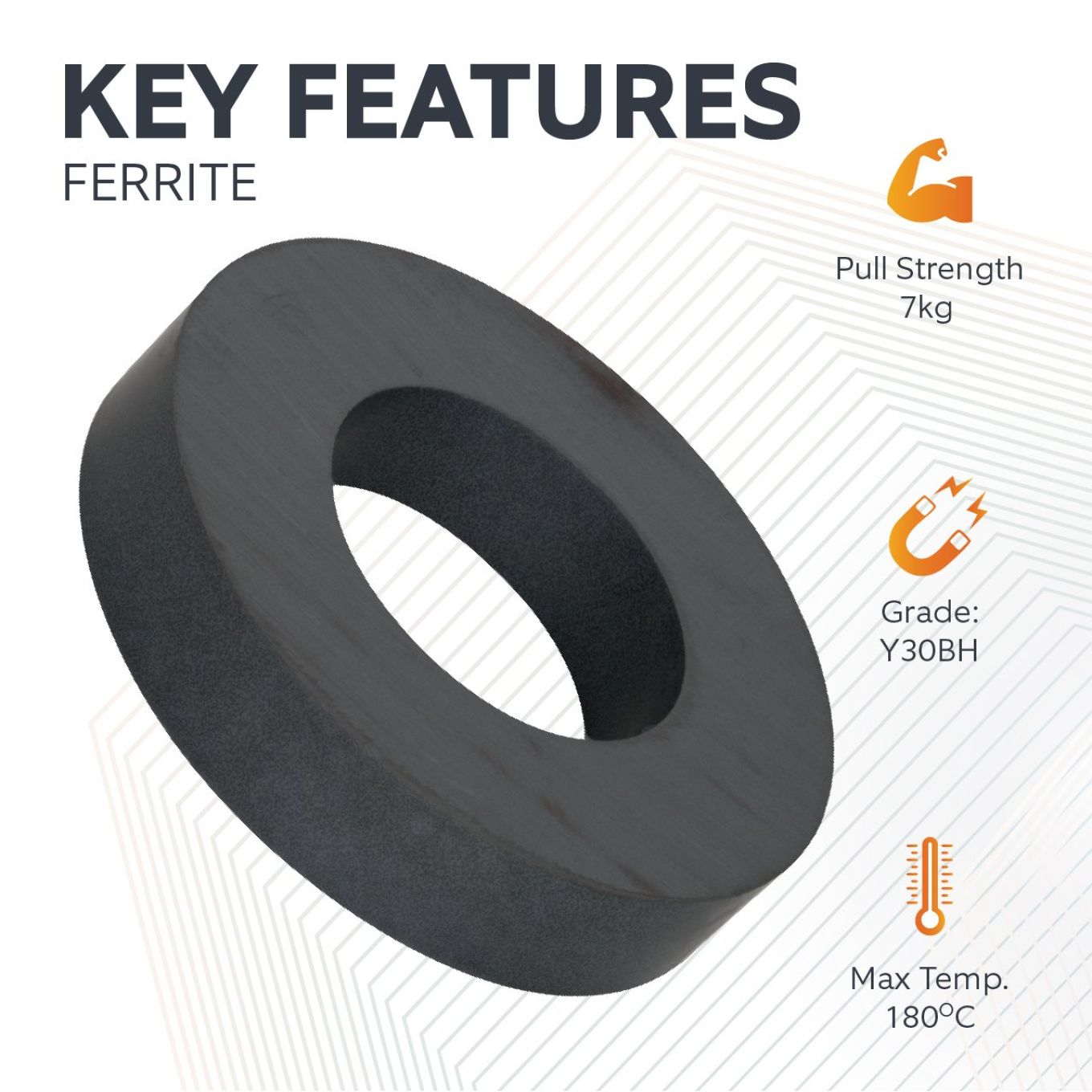

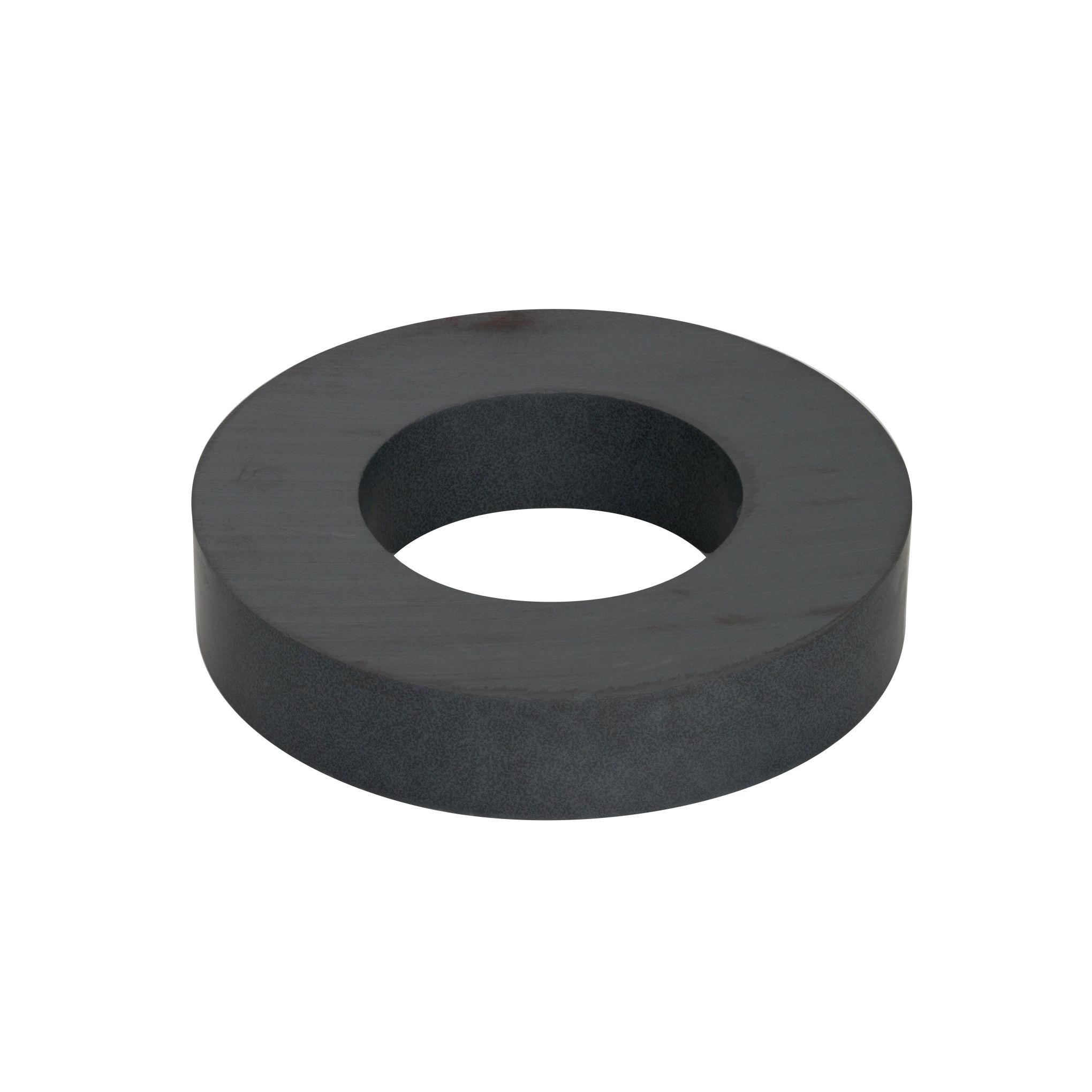

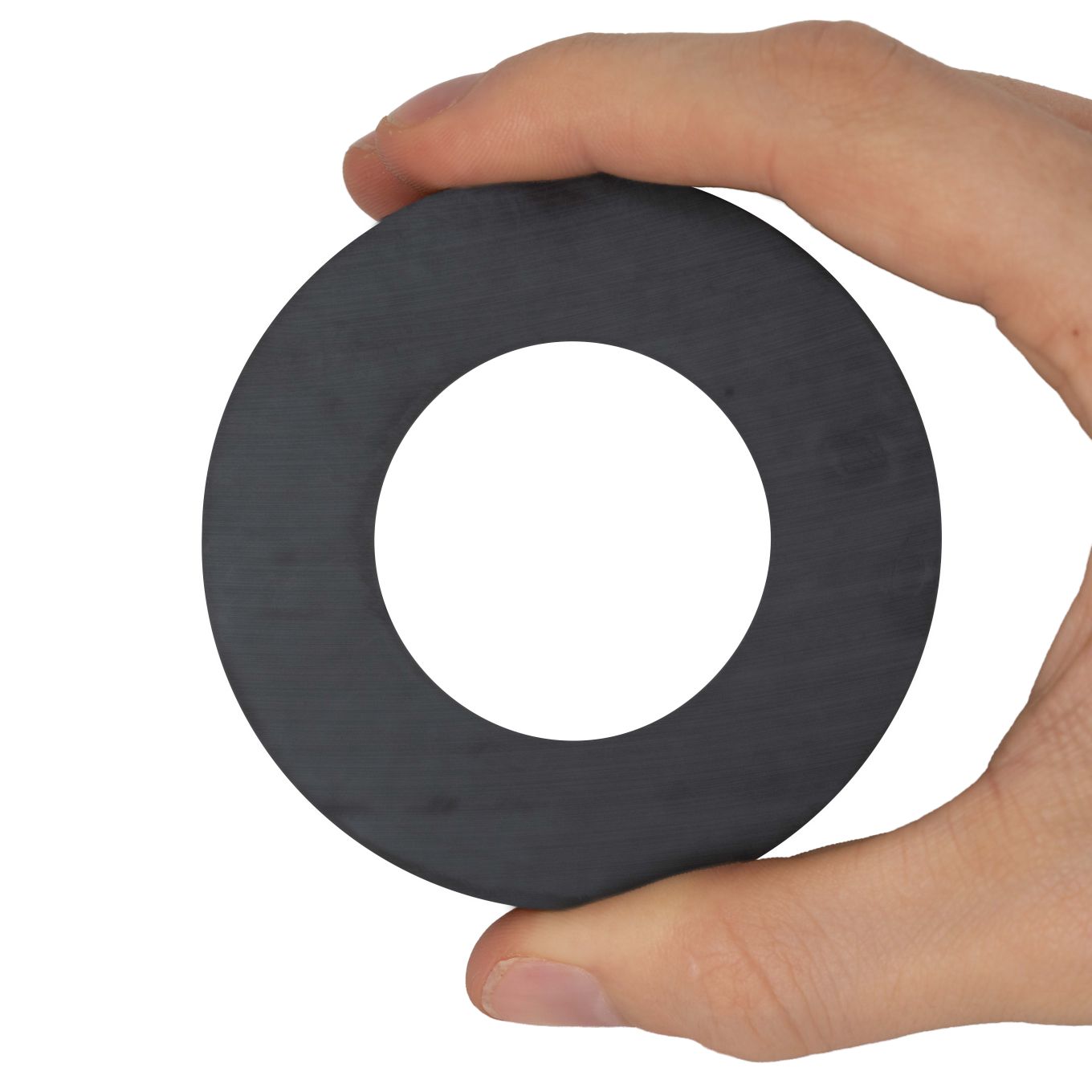

74mm O.D x 40mm I.D x 15mm thick Y30BH Ferrite Ring Magnet - 7kg Pull
Commonly used in loudspeaker systems and magnetic rollers among many other applications, these versatile, large ferrite ring magnets provide excellent resistance to demagnetisation and corrosion at unbeatable value.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
Please fill out the form below and we'll get back to you.
74mm O.D x 40mm I.D x 15mm thick Y30BH Ferrite Ring Magnet - 7kg Pull
(Inc. VAT)£7.00
(Ex. VAT)

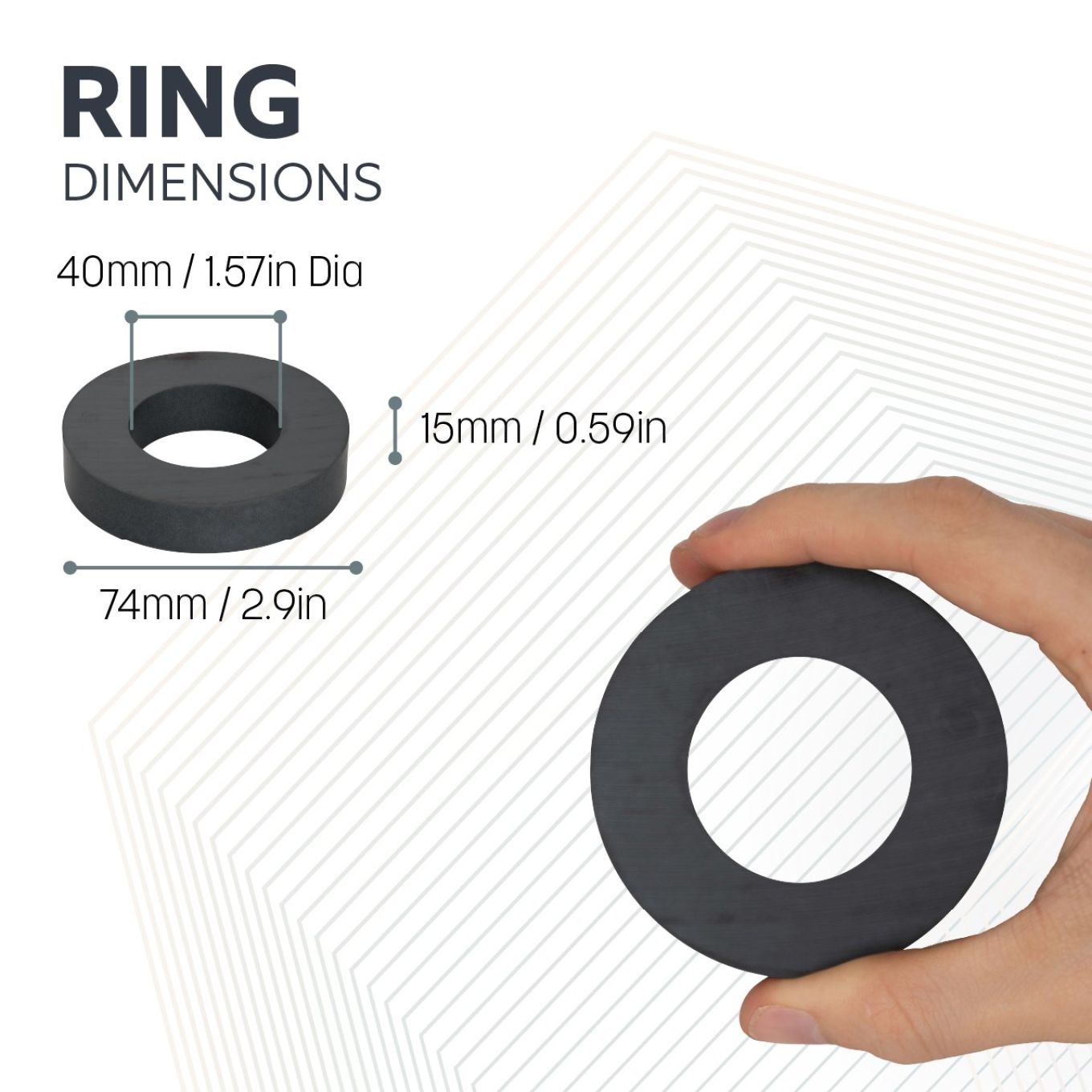

- 74mm outer diameter x 40mm inner diameter x 15mm thick
- Each magnet's north and south poles are on opposite circular faces
- Each magnet can support 7kg pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness
- Resistant to demagnetisation and corrosion without any extra coating
Also known as ceramic magnets, ferrite magnets offer excellent value for money when pull strength is not the most important factor. They have a high resistance to corrosion and demagnetisation and can operate in temperatures up to 180oC. Ring magnets are made specifically for loudspeaker systems and their sizes have evolved with demand from this market. However, they are also commonly used in magnetic rollers for separating applications and in the printing industry. They are also a vital component found in fast running conveyor systems in many manufacturing plants dealing with ferrous material.
